RKS.062.30.1904 four point contact ball slewing ,1729x2012x68m, JBT10471 Standard,offer sample

RKS.062.30.1904 SKF code    Single row four-point contact ball slewing bearings

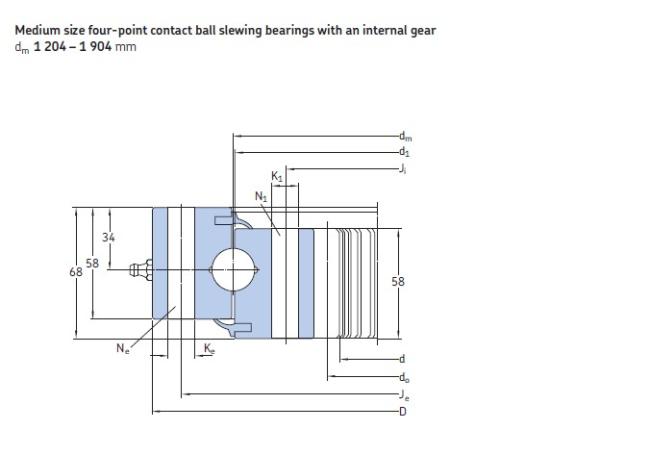

RKS.062.30.1904   Slewing bearing with internal gear ,1725x2012x68 mm, JBT10471 Standard

Dimensions - d (inside diameter) 1725  mm

Dimensions - D (outside diameter) 2012  mm

Dimensions - B (width) 68 mm

RKS.062.30.1904   Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.


 RKS.062.30.1904   The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
 RKS.062.30.1904  The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally,  RKS.062.30.1904 slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically,  RKS.062.30.1904  slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

 RKS.062.30.1904  Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

   If you want to know  RKS.062.30.1904  bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
