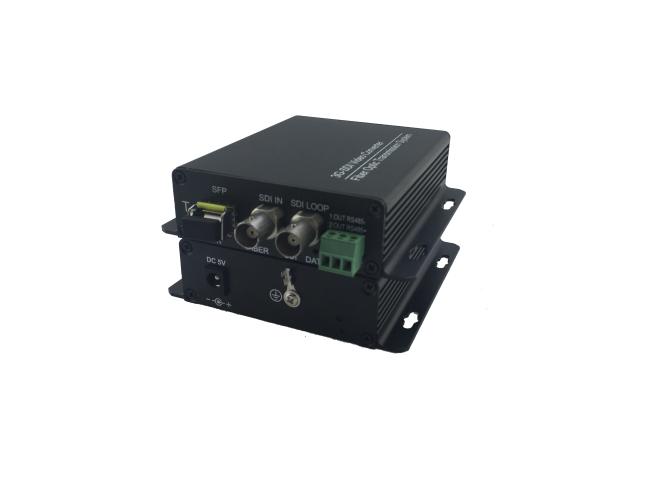

Multimedia HDTV 1080P1Ch 3G SDI to Fiber Converter transmitter receiver
Multimedia HDTV 1080P1Ch 3G SDI to Fiber Converter transmitter receiver ,85mm x 76mm x 30mm
Overview:
Ho-link 1Ch 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.
Feature:
1. all high-resolution video signal supported
2. Lossless video regeneration & relaying supported;
3. super optic dynamic range and free of adjustment prior to use;
4. surface coating technique;
5. fiber optic WDM/CWDM/DWDM technique;
6. 1000 M optical fiber transmission, easy for update;
7. industry level ultra-broad temperature range (-40~+85), adaptable to various environments;
Specification:
| Serial TV BNC Input | |
| TV signal standard | SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 1.485Gb/s) |
| Input channel | 1 |
| Reflection loss | >15DB |
| Equilibrium | 0-150m @ 1.485Gb/s |
| Connector | 75Ω BNC |
| Optic Output | |
| Channel | 1 |
| Type | Single-mode fiber (multimode optional) |
| Wavelength | 1310nm /1550nm |
| Reflection loss | > 15dB |
| Jitter | < 0.2UI |
| Connector | FC/PC(SC/PC optional) |
| Ethernet | 1-port 1000M or 100M RJ45 optional |
| Serial TV BNC Output (EO/OE) | |
| Output channels | 1 |
| Signal level | 800mV nominal |
| Rise/fall time | 200Ps nominal |
| Overshoot | <10% amplitude |
| Reflection loss | > 15dB |
| Jitter | < 0.2UI |
| Connector | 75Ω BNC |
| Power and environmental indicator | |
| Operating temperature | -45℃~+50℃ |
| Pressure | 220VAC to 12VDC/1A |
| Power | 12W |
| EMI/RFI | FCC Part 15 Class A, EU EMC standard |
| Average time trouble-free | >100000 hours |
| Other | |
| Stand alone Dimension | 483mm x270mm x45mm |
| Weight | 2Kg |
Typical application
