0 - 60km Transmission HD 1080p Video Converter 1U Chasis 32channel video multiplexer
16channels HDCVI digital Video BNC to fiber optic converter with RS485 Data
AHD/CVI/TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD or HDCVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-16 channels AHD/TVI or HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.
1. Automatically identify formats of input videos.
2. Support 1~8ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.
3. With 1-CH reverse RS485 data or without data for optional.
4. DC 5V power supply.
5. Support 720p, 960p, 1080p video etc.
6. Through LED indicators to inform its functional mode.
7. Industrial wide range of operational temperature.
8. Plug and play, simple installation.
Applications:
- Remote OB Van/Truck Video Feeds
- Broadcast Studio Camera Feeds
- Long-haul Signal Transport
- TV station/video conference
- Lecture Hall Projector Connectivity
- Medical/Surgical Room Broadcast
- Building to video conference calling
- Small corporate campus video links
Specifications:
| Data | Connector: Terminal Blocks Encoded type: RS485 / RS422 / RS232 / Manchester Data rate: DC ~ 300Kbps BER: ≤10-9 |
| Audio | Connector: Terminal Blocks Audio input / output impedance: 600Ω(Balance/ unbalance) Audio input / output voltage: 2Vp-p ( typical value) Audio input / output level: 0dBm ( typical value) Video bandwidth: 20HZ~20KHZ Audio digital encoded bandwidth: 24bit Audio signal-to-noise ratio: S/N≥85dB |
| Telephone | Connector: RJ11 Bandwidth: 8KHZ Features: Support call-showing function ;support H-F Operating mode: Point to point hot-line mode / FXS-FXO |
| Ethernet | Connector: RJ45 Support mode: Half duplex or Full duplex Standards: IEEE802.3 Data rate: 10M / 100Mbps Bandwidth: 25M |
| Contact Closure | Physical connector: Industrial standard connector port Alarm output: Support any type of active or passive alarm output Data Interface: Support TTL, RS232/485/422 or relay output |
| Optical Budget | Multi-mode / 20dBm / 2KM Single mode / 20dBm / 20KM Single mode / 22dBm / 40KM Single mode / 25dBm / 60KM |

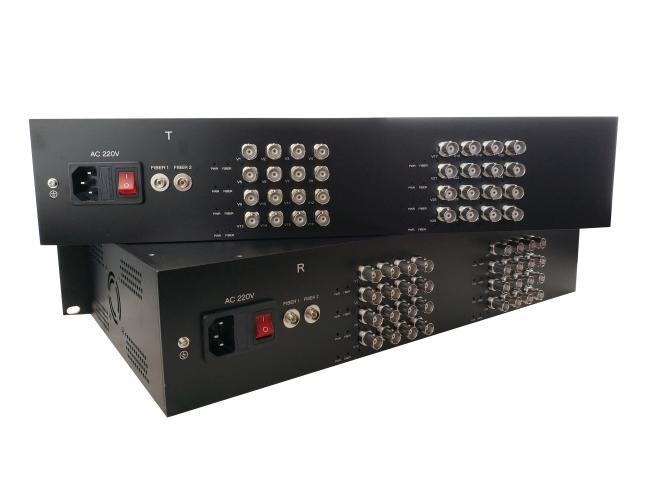

Product Display
Competitive Advantage:
Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

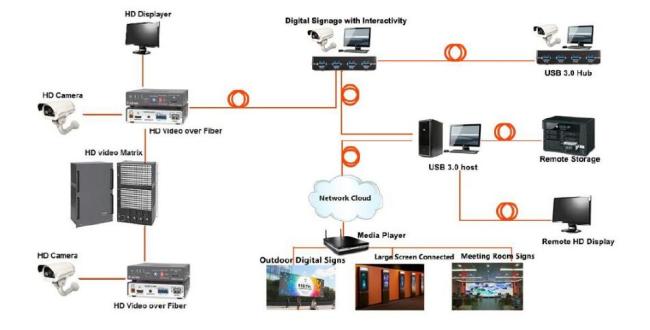

HDCVI TO Fiber Converter System connection diagram:
