SDI Digital video fiber optic converter 3 years warranty,CE RoHS FCC certification
SDI SD / HD Digital video fiber optic converter 3 years warranty,CE RoHS FCC certification
Overview

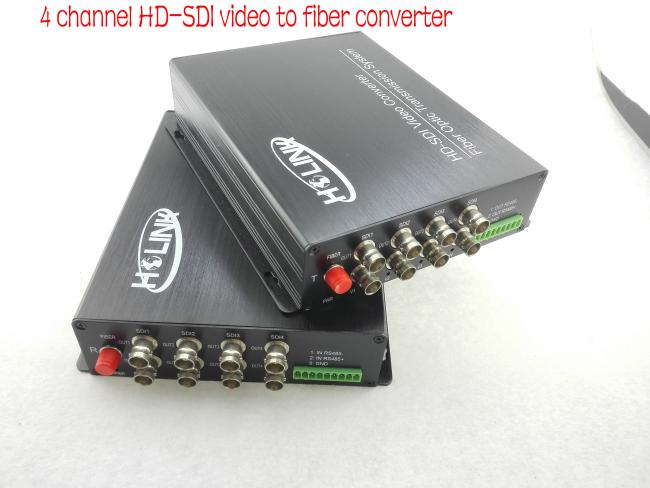

4K-SDI To Fiber Optic Converter is an ideal and economic solution for broadcasting or surveillance applications. It receives 4 3G/HD/SD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).
Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with Transwan advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.
Features
- 1/2/4/8/16-ch unidirectional HD-SDI video over one fiber
- Range from 19.4Mb/s to 1.485Gb/s
- Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
- Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
- Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
- 150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
- Optional network management system
- LED status indicators monitor the critical parameters
- Optional network system
- Support hot swap
- Support stand-alone, 1U rack mount and 4U rack mount
Specifications
| SDI input/output | ||
| Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M | |
| Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s | |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
|
| SDI interface | BNC 75 Ohm | |
| Fiber interface | ST/SC/FC | |
| Number of tranmitter channel | 4 | |
| Transmitter wavelength | CWDM wavelength optional | |
| Transmitter output power | -5~0dBm(0±3dBm optional) | |
| Number of receiver output | 4 | |
| Receiver sensitivity | -18dBm~0 dBm | |
| General index | ||
| Input power | DC 5V | |
| Power consumption | 8W | |
| Work Temp | -20°C to 55°C | |
| Storage Temp | -40°C to 85°C | |
| humidity | 0 ~ 95% (non-condensing) | |
| Net weight | 2KG/pair | |
Shipping and packing:
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
Warranty policy
Vedio convertor is three year warranty as following::
The factory warranty period is three years from date of delivering goods.
The buyer should return the goods if it donot working well within 3 month,the seller will give money back. Or seller send new item to replace bad item,all transportation cost be paid by seller.
after 3 to 6 monthes,repair free,half transportation cost for both,pass for 6month the cost we need discuss.
