Singlemode 2 Channel Bnc To Fiber HD 1080p Video Converter With 1RS485 Data
2 Channel bnc to fiber video converter Singleode SIngle fiber 20km with 1RS485 Data
Overview:
1CH AHD Video Data Fiber Converter support 1CH 720p / 25,720p / 30,720p / 50,720p / 60,1080p / 25,1080p / 30 AHD coaxial analog HD video with 1CH reverse/bidi RS485 data over a single fiber optical fiber , using self-developed non-compressed digital photoelectric conversion technology, , to achieve megapixels level analog HD video point to point highly and reliably transmission over fiber without delay,
The digital video optical transmitters and receivers (video converters) transmit high fidelity signals of video, audio, data ,telephone, etc. with advanced technology which enables efficient transmission with minimum disturbance.
Feature:
-
1. Non-compression coding technology.
2. Support 25/30/50 / 60fps 720P & 25 / 30fps 1080P
3.Support 1~16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable
4. Wide optical dynamic range and advanced adaptive technology, transmissiondistance up to 20KM
5. The surface mount devices, to ensure that products are small, high stability, high reliability
6.Low electromagnetic interference (EMI), radio frequency interference (RFI)as well as common ground loop interference
7. Rich LED indicator diagnostic indication
8. Plug and Play, hot swappable
9. DC 5V power supply
10. Industrial wide temperature range (-30 ℃ ~ + 75 ℃), to adapt to the more environment
11. support user customization and OEM

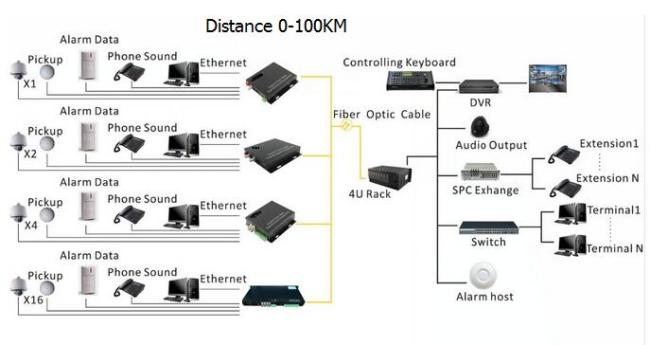

Application:
Specification
| Optical Parameters | |
| Wavelength | 850/1310µm(Multi-mode) |
| 1310/1550µm(Single Mode) | |
| Optical Interface | FC, SC, and ST optional |
| Video Parameters | |
| Interface | BNC outlet |
| Nominal Input/output PWL | 1.0Vp-p |
| Nominal Input/output Impedance | 75Ω(Unbalanced) |
| Video Bandwidth | 5Hz~10MHz |
| Weighted Signal/noise Ratio | ≥65dB |
| Audio Parameters | |
| Frequency Width | 20Hz~20KHz |
| Audio Direction | Forward, reverse, or bi-direction optional |
| Interface | RCA, Terminal block optional |
| Input/output Impedance | 600Ω(Balanced / Unbalanced) |
| Weighted Signal to noise Ratio | >85dB |
| Data Parameters | |
| Data Type | RS232, RS485, RS422, Manchester, Bi-phase |
| Data Direction | Forward, reverse, or bi-direction optional |
| Interface | RJ45, Terminal Block optional |
| Communication Speed | 0~300Kbps |
| Work Mode | FDX/semi duplex |
| Error Code Rate | < 10-9 |
Shipping and packing
Package:neutral /standard/customized packing
Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)
Warranty: 3 years
