wood working machine-wood shaving machine for animal bedding

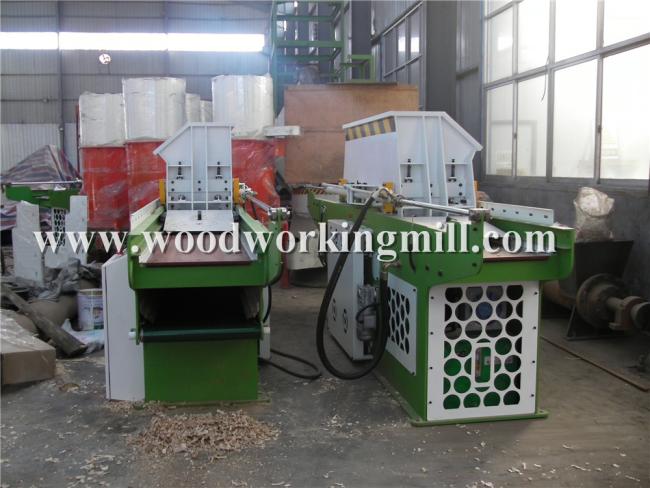

wood shaving machine for animal bedding
Introduction
Shaving machine, also called wood crusher machine, wood shaving machine, wood chips machine. According to our domestic need and adopt Turkey process technology, we do some improvement on this machine.
Feature
1.Advance technology, base on Turkey process technology, do some improvement on its design, in steady of welding connection, we use accurate punching and embed method which avoid loosing with the machine when its running
2. High quality spare part, for the blade, you have HSS and SK choice, for the bearing, it is FAG/SKF which can be use a long time and quite durable.
3. Hydraulic Transmission, stable performance and low noise
4. Widely use, our machine can produce small volume and light wood shavings which can be used in paper mill, transportation filler and animal bedding etc.
3. Advantage:
1. Preventative System for Wood Jamming
2. Adjust the size of shavings by yourself
3. Easy replace the blades
4. Conveyor feeding shavings out
5. Safety Protection
6. Powerful working system
4. Application
Shaving machine (wood shaving machine) can made wood, branch, crotch, leftover materials etc into shavings. As for the small size of the shavings, they are widely used in many fields. Shaving board in cabinet making factory, wood pulp in paper mill, protective filler for the fragile cargo in transportation, animal bedding in hennery. Etc.
5. Technical Parameters
|
Hopper length(cm) |
145 |
|
Input material Dia.(cm) |
45 |
|
Cutting head(set) |
4 |
|
Blade(set) |
24 |
|
RPM(r/min) |
4500 |
|
Input material length (cm) |
142 |
|
Power(kw) |
18.5+18.5+0.37+5.5=42.87kw |
|
Shaving depth(mm) |
1-5 |
|
Hopper route(mm) |
2200 |
|
Feeding speed (hydraulic)(m/min) |
01-0.25m/sec(6-15m/min) |
|
Dimensions(L*W*H)(cm) |
515*115*180 |
|
Weight(kg) |
2850 |
|
YT-145 |
DOC(depth of cut) |
|||||
|
1mm |
2mm |
3mm |
4mm |
5mm |
||
|
Speed |
0.10 m/sec |
427kg |
654kg |
880kg |
1107kg |
1334kg |
|
0.15 m/sec |
540kg |
880kg |
1221kg |
1561kg |
1901kg |
|
|
0.20 m/sec |
654kg |
1107kg |
1561kg |
2014kg |
2468kg |
|
|
0.25 m/sec |
767kg |
1334kg |
1901kg |
2468kg |
3035kg |
|
Contact Information
Sarah
whatsapp/wechat/mobile:0086-13526880645
Twitter:@sarahwang2015

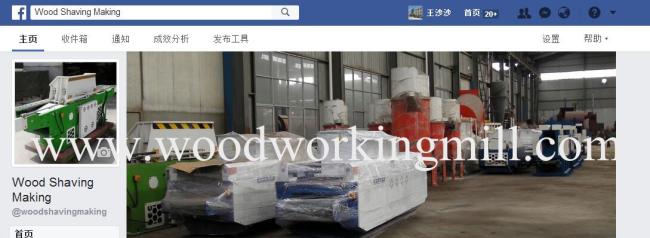

Facebook page:@woodshavingmaking
