Hot cargo!wood chipper machine with high quality
Hot cargo!wood chipper machine with high quality
Introduction

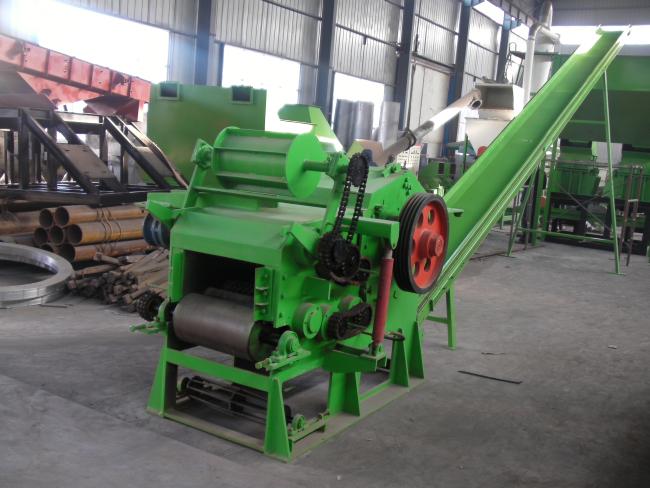

Drum chipper is an equipment specializing in the production of wood chipper,the frame is made of high strength steel plate welded together,according to the different thickness of the cutting material,the feeding roller assembly can use hydraulic system in a certain range floating up and down.The main raw material is undersized log,wood branch,slab,wattle,peeler core etc,also can be used to cutting non-wood raw materials(such as sugar cane,reed,bamboo,etc)
Application

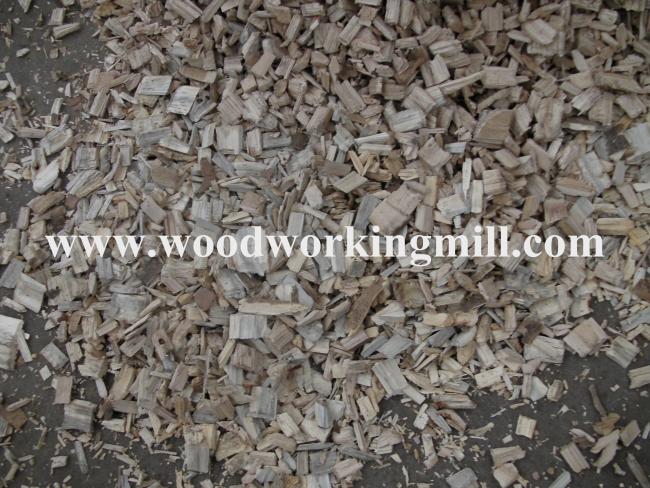

Finished product can be used in paper mill,particleboard,fiber board factory wood chip production,also can be used in the pulp and paper,non-wood panel manufacture and so on
Specification
| Model | 215 | 216 | 218 | 2113 |
| Inlet size(mm) | 160*400 | 230*500 | 300*680 | 450*700 |
| Roller speed(r/min0 | 592 | 590 | 650 | 500 |
| Max.diameter of input(mm) | 160 | 230 | 300 | 450 |
| Output size(mm) | 30 | 30 | 30 | 38 |
| Capacity (t/h) | 3-4 | 7-8 | 12-15 | 15-30 |
| Main power(kw) | 45 | 55 | 110 | 200-250 |
| Feeding power(kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
| Pump motor(kw) | 1.5 | 1.5 | 1.5 | 3 |
| Machine weight(kg) | 3000 | 4050 | 7000 | 11840 |
| Dimension(mm) | 1500*1550*1000 | 1800*1900*1210 | 2200*2150*1500 | 3600*2500*2050 |
