Wood crusher machine ,55kw,high capacity,easy operation
Wood crusher machine ,55kw,high capacity,easy operation
Introduction

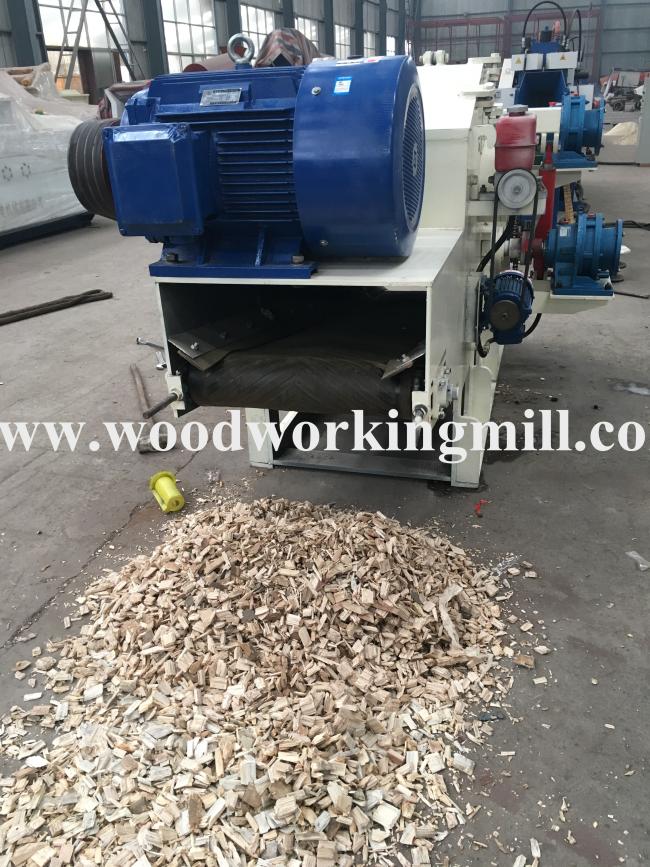

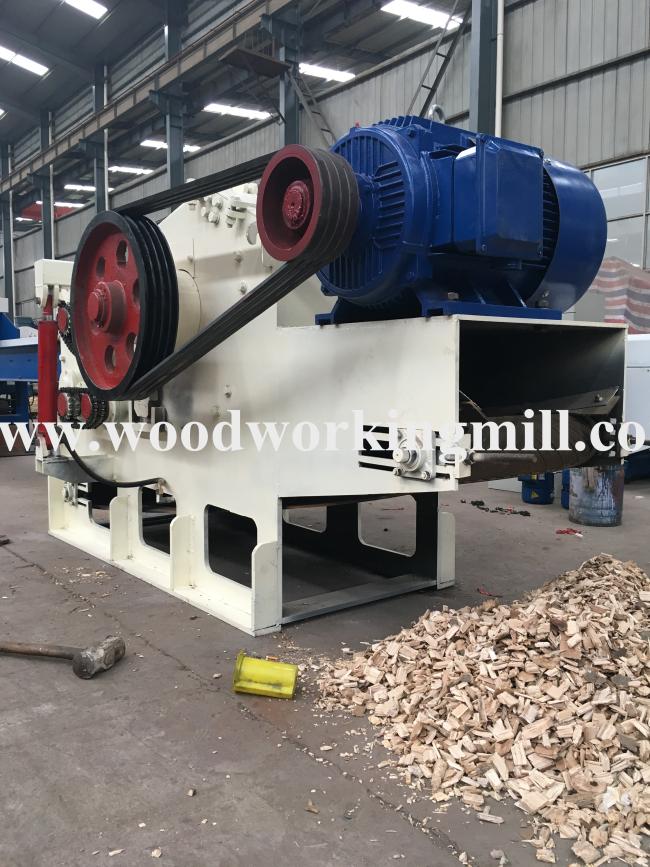

Drum chipper is an equipment specializing in the production of wood chipper,the frame is made of high strength steel plate welded together,according to the different thickness of the cutting material,the feeding roller assembly can use hydraulic system in a certain range floating up and down.The main raw material is undersized log,wood branch,slab,wattle,peeler core etc,also can be used to cutting non-wood raw materials(such as sugar cane,reed,bamboo,etc)
Application
Finished product can be used in paper mill,particleboard,fiber board factory wood chip production,also can be used in the pulp and paper,non-wood panel manufacture and so on
Specification
| Model | 215 | 216 | 218 | 2113 |
| Inlet size(mm) | 160*400 | 230*500 | 300*680 | 450*700 |
| Roller speed(r/min0 | 592 | 590 | 650 | 500 |
| Max.diameter of input(mm) | 160 | 230 | 300 | 450 |
| Output size(mm) | 30 | 30 | 30 | 38 |
| Capacity (t/h) | 3-4 | 7-8 | 12-15 | 15-30 |
| Main power(kw) | 45 | 55 | 110 | 200-250 |
| Feeding power(kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
| Pump motor(kw) | 1.5 | 1.5 | 1.5 | 3 |
| Machine weight(kg) | 3000 | 4050 | 7000 | 11840 |
| Dimension(mm) | 1500*1550*1000 | 1800*1900*1210 | 2200*2150*1500 | 3600*2500*2050 |
Contact Information
Sarah
whatsapp/wechat/mobile:0086-13526880645
Twitter:@sarahwang2015

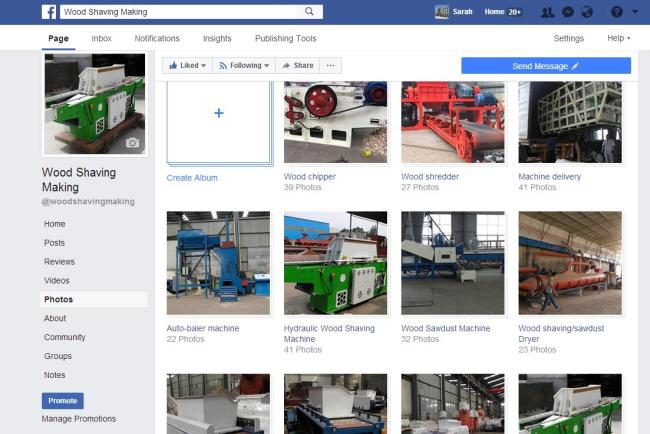

Facebook page:http://www.facebook.com/woodshavingmaking/
