Shredder machine for wood,metal,tire with powerful function
Shredder machine for wood,metal,tire with powerful function
1.Brief introduction

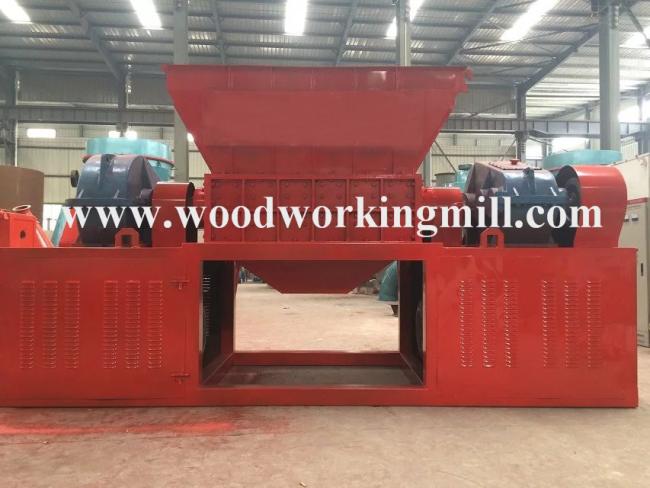

Double shaft shredder is used in shredding metal,wood,plastic,tire,aluminum,fiber,paper and lot of mixed waste,especially waste containing metal and so on
In details,such as metal drum,freezer.car body,scrap steel,water bottle,PET bottle,oil and gas bottle,any plastic bottle is ok. Wood scrap,wood pallet,plastic shell.metal sheet,cylinder head,aluminum panel,cable,metal bucket,wood board,woven bag etc.
2.Structure

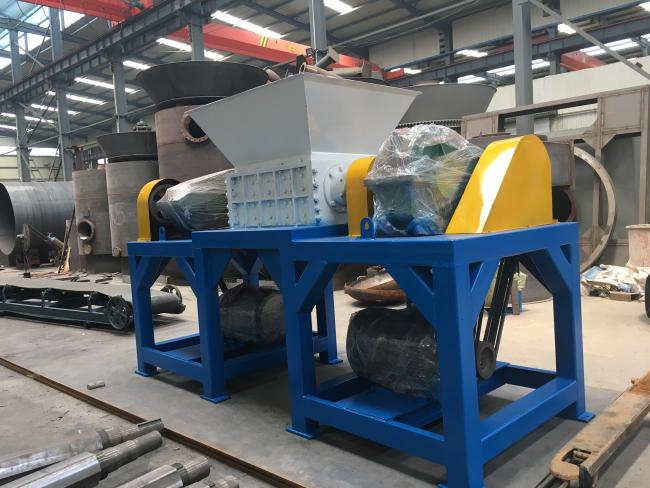

The shredding machine consists of blade sets,bearing housing,support frame,feeding system,power system,electric control system
3.Features
A:The special design with enough power,it can ensure the production
B:The shredder with low running cost and long lifetime
C:This machine adopt PLC control system,ensure the efficiency and control power,it is easy to operate

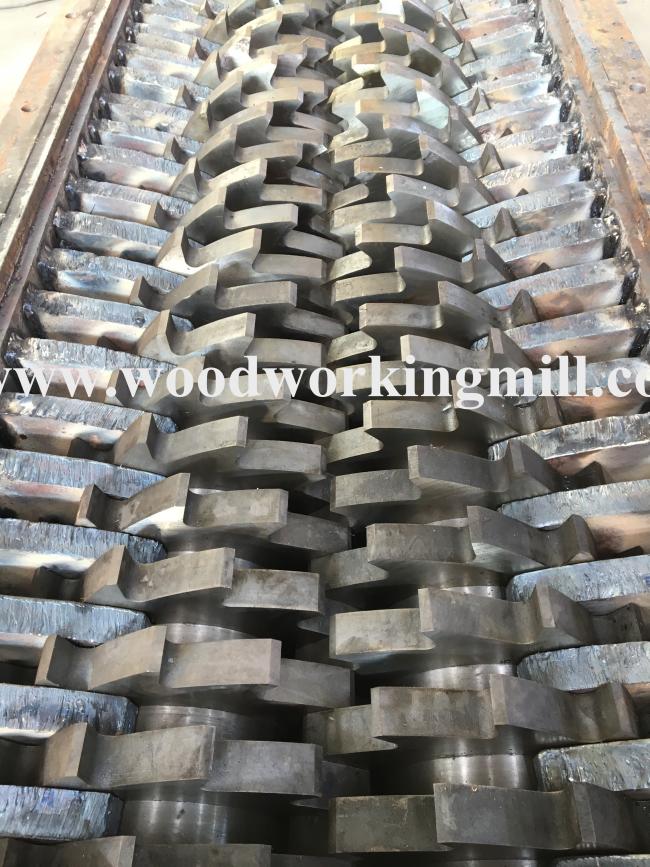

D:Materials of knives is 9 Crsi,it is endurable
4.Working principle
The material will be transferred to the blades assemble box by conveyors,there are many knife in the assemble box,and the material will be tear,extrusion,shear and other integrative action,then the small pieces material will be out from the bottom of the shredder
5.Technical data
| Model | Knife size |
Power (kw) |
Capacity (T/h) |
Knife Qty.
|
Reducer |
Machine size (m) |
Weight (t) |
|
600 (6-8 teeth) |
Φ200*20 | 11*2 | 0.3-0.5 | 30 | 350*2 | 2.6*1*2.1 | 2 |
| Φ220*20 | 11*2 | 0.4-1 | 30 | 350*2 | 2.6*1.1*2.1 | 2.2 | |
|
1000 (6-8 teeth) |
Φ300*30 | 30*2 | 1-1.2 | 34 | 400*2 | 3.4*1.25*2.2 | 6 |
| Φ300*40 | 37*2 | 1-1.5 | 26 | 500*2 | 3.4*1.25*2.2 | 6.3 | |
| Φ400*40 | 37*2 | 1-2 | 26 | 500*2 | 3.4*1.25*2.2 | 6.5 | |
| Φ400*50 | 45*2 | 1.5-2.5 | 20 | 650*2 | 3.4*1.25*2.2 | 7 | |
|
1200 (6-12 teeth) |
Φ300*40 | 45*2 | 2.5-3 | 30 | 650*2 | 3.8*1.25*2.2 | 8 |
| Φ400*40 | 45*2 | 2.8-3.3 | 30 | 650*2 | 3.8*1.25*2.2 | 8.5 | |
| Φ500*40 | 55*2 | 3-3.5 | 30 | 650*2 | 3.8*1.25*2.2 | 9 | |
|
1500 (6-15teeth) |
Φ300*30 | 55*2 | 3.8-4.5 | 50 | 750*2 | 4.4*1.5*2.5 | 11 |
| Φ400*40 | 55*2 | 4-5 | 38 | 750*2 | 4.4*1.5*2.5 | 12 | |
| Φ500*50 | 75*2 | 4.5-5.5 | 30 | 750*2 | 4.4*1.5*2.5 | 14 | |
| Φ550*50 | 75*2 | 5-6 | 30 | 750*2 | 4.4*1.5*2.5 | 16 | |
|
1800 (9-18 teeth) |
Φ400*40 | 90*2 | 6-7 | 45 | Zsy335*2 | 5.3*2.1*2.8 | 17 |
| Φ550*50 | 90*2 | 7.5-8.5 | 36 | Zsy335*2 | 5.3*2.1*2.8 | 18 | |
| Φ600*60 | 90*2 | 9-10 | 30 | Zsy400*2 | 5.3*2.1*2.8 | 19 | |
|
2000 (9-18 teeth) |
Φ550*50 | 110*2 | 10-13 | 40 | Zsy400*2 | 6*2.2*3.5 | 22 |
| Φ600*60 | 110*2 | 12-16 | 34 | Zsy450*2 | 6*2.2*3.5 | 23 | |
| Φ650*60 | 110*2 | 15-20 | 34 | Zsy450*2 | 6*2.2*3.5 | 25 |
