Heating Treatment Axle Shaft Forging 50Mn 34CrNiMo6 Marine Forging
Heating Treatment Axle Shaft Forging 50Mn 34CrNiMo6 Marine Forging
Products:
Marine forging,rudderstock,transmission intermediate shaft,carbon manganese steel vessel shaft,vessel survey forging,ABS intermediate shaft,BV intermediate shaft
Products reference:
| Material |
50Mn,34CrNiMo6,1045,35#,304L
|
|
Forging equipment
|

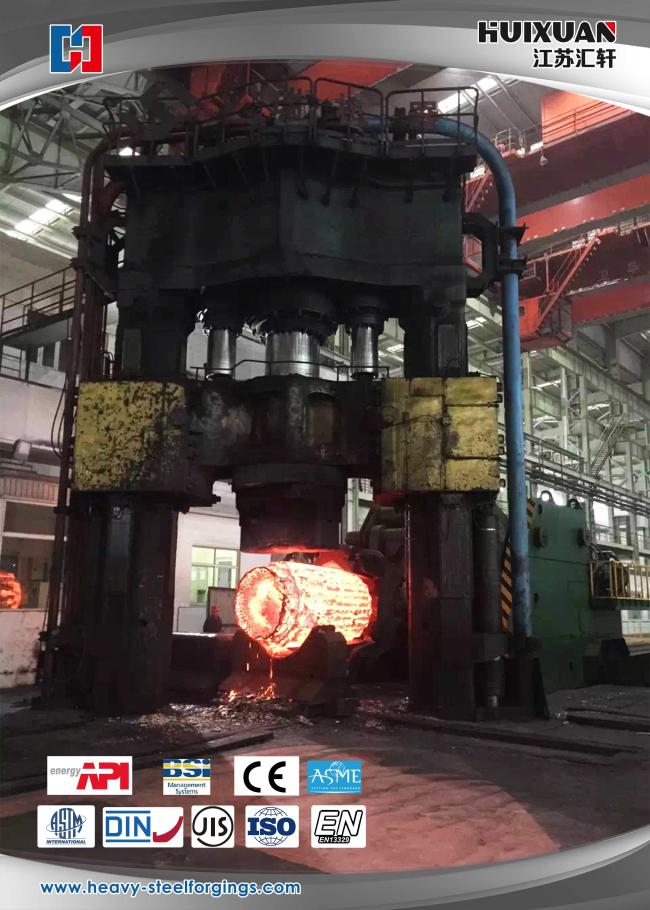

6000T open die hdyropress |
| Application |

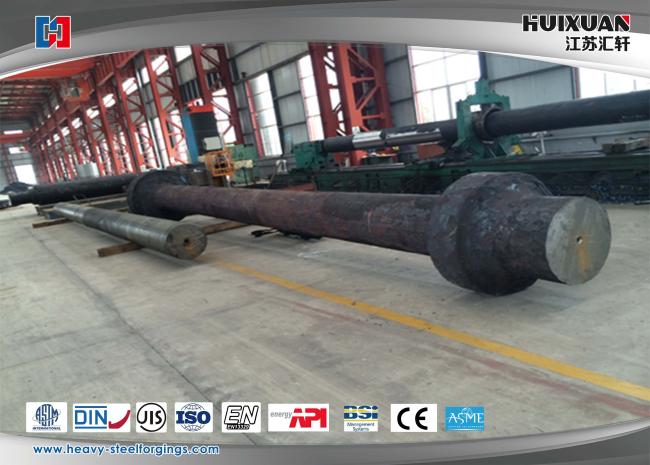

Intermediate shaft,doube-end flange plate of marine equipment,transmission connection function
|
|
Melting process
|
EF+LF+VD |
|
Production process
|
Forging+heat treatment+rough machining+QT+finish machining |
|
Forging ratio
|
≥3.5 |
|
Applicable standard
|
ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
|
Executive standard
|
JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
|
Certification authorities
|
ABS,DNV,BV,GL,KR,CCS,LR,NK,RINA,RS. |
|
Delivery terms |
Rough machining(N+T);finish machining(Q+T),nitriding quenching
|
|
Test equipment |
Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine
|
|
service |
Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.
|
Custom properties
|
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo | Others | |
| 1045 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.30 | -- | ||
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.30 | -- | - | |
| 34CrNiMo6 | 0.30-0.38 | ≤0.040 | 0.50-0.80 | ≤0.035 | ≤0.035 | 1.30-1.70 | 1.30-1.70 | 0.15-0.30 | ||
| 304L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | - | ||
|
Mechanical properties |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 1045 | Ø25 | ≥600 | ≥355 | ≥16 | ≥40 | V | ≥39 | ≤229HBS |
| 50Mn | Ø25 | ≥645 | ≥390 | ≥13 | ≥40 | V | ≥31 | ≤255HBS |
| 34CrNiMo6 | Ø15 | 750-900 | 450-600 | ≥13 | ≥55 | V | -40℃≥20 | ≤269HBS |
| 304L | Ø15 | ≥520 | ≥205 | ≥40 | -- | ≤187HBS |
Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Commerce clause
| Max weight | 40T |
| MOQ | 1PC |
| Delivery time | 30-50days |
| Package | Poly wood case, wood pallet, steel frame support |
| Delivery terms | FOB;CIF;CFR；DDU； |
| Payment terms | T/T,LC |
| Type of shipping |
By ocean,air |
Keywords
The main parts of marine equipment, Big nine classification society appoved marine forging product, carbon manganese steel,alloy steel and stainless steel intermediate shaft,third party industrial certification
Advantages
1. High-precision dimensional tolerance;
2. Excellent mechanical properties;
3. Produce different dimension based on customer’s requirements;
4. Advanced manufacture equipments and inspection devices;
5. Excellent technical personality;
6. Control the production procedure strictly;
7. Pay attention on the package protection;
8. Quality full service.
Further more information, please feel free to contact us!
