304L Gear Ring Stainless Steel Forged Flanges With ASTM ASME DIN Standard
304L Gear Ring Stainless Steel Forged Flanges With ASTM ASME DIN Standard
Products:
low carbon steel flange,carbon manganese steel flange,low alloy steel flange,stainless steel flange,normalizing flange,QT flange
Products reference:
| Material | Q345D,50Mn,4140,18CrNiMo7-6,304L |
| Max dia | 9000MM |
| Application | Flange forging after QT can obtain better grain size and mechanical property,meet higher product requirement |
| Melting process | EF+LF+VD |
Production process | Forging+heat treatment+rough machining+QT |
| Forging ratio | ≥5 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN ,DIN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS, IST, UL,CTI |
| Delivery term | Rough machining(N+T);finish machning(Q+T) |
Test equipment | Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine |
Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Process procedure:
Forging process flow quality control:
- Raw material steel ingot into warehouse(test the chemical content)
- Cutting→ Heating(Furnace temperture test)
- Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)
- Machining→ Inspection(UT,MT,Visal diamention, hardness)
- QT→ Inspection(UT, mechanical properties, hardness, grain size)
- Finish machining→ Inspection (dimension)
- Packing and Marking(steel stamp, mark)→ Storage Shipment
Custom properties:
Material element | C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 4140 | 0.38-0.43 | 0.15-0.35 | 0.60-0.90 | ≤0.035 | ≤0.040 | 0.80-1.10 | -- | 0.15-0.25 | - |
| Q345D | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 18CrNiMo7-6 | 0.15-0.21 | 0.17-0.35 | 0.50-0.90 | ≤0.025 | ≤0.025 | 1.50-1.80 | 1.40-1.70 | 0.25-0.35 | |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | 0.25 | 0.30 | -- | 0.48-0.56 |
| 304L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | - |
Mechanical property | Dia.(mm) | TS/Rm(Mpa) | YS/Rp0.2(Mpa) | EL/A5(%) | RA/Z(%) | Type Of notch | Impact energy | HBW |
| 4140 | Ø10 | 740~1000 | 450~850 | ≥12 | ≥25 | V | ≥40 | ≤250HBS |
| Q345D | Ø10 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥27 | ＝＝ |
| 18CrNiMo7-6 | Ø15 | ≥980 | ≥785 | ≥9 | ≥40 | V | ≥47 | ≤269HBS |
| 50Mn | Ø25 | ≥645 | ≥390 | ≥13 | ≥40 | V | ≥31 | ≤255HBS |
| 304L | Ø15 | ≥520 | ≥205 | ≥40 | -- | ≤187HBS |
Commerce clause:
| Max weight | 30T |
| MOQ | 1PC |
| Delivery time | 15-50 Days |

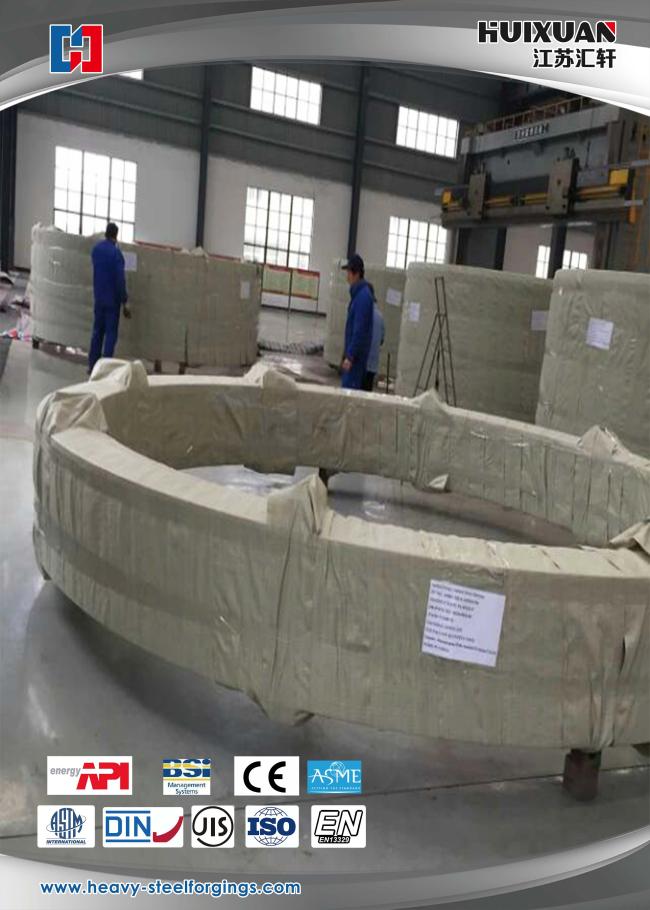

| Package | Plywood case,wooden pallet,steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| type of shipping | By ocean,air |
Why choose HUIXUAN?
- HUIXUAN is a directly professional manufacturer with over 10 years experiences specialized in producing custom forging machining parts.
- The company is able to meet your high quality standard, performs 100% QC test, certification:ISO9001-2008.
- HUIXUAN specializes in all kinds of material , surface treatment and heating treatment. Fast & flexible turnaroun,100% on-time delivery.
- HUIXUAN only takes reasonable profit , competitive price will be our greatest advantage.
- Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.
