34CrNiMo6 F22 Heating Treatment Open Die Forging Roll QT For Rough Machining
34CrNiMo6 F22 Heating Treatment Open Die Forging Roll QT For Rough Machining
Products:

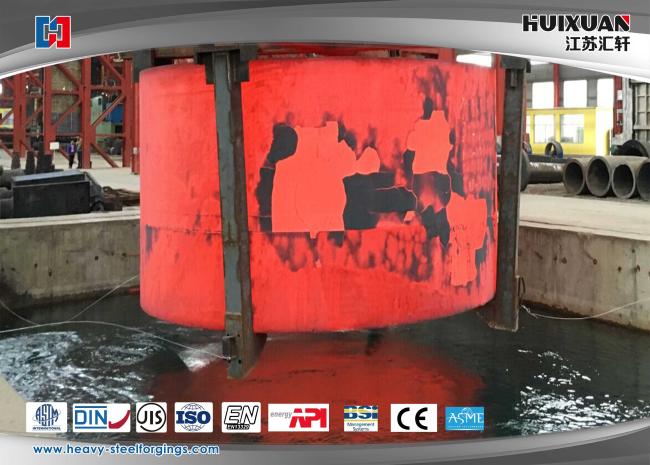

Supporting roll QT,up roll QT,barrel QT,tube plate QT,crushed cone roll QT,type barrel QT,die steel QT.
Large scale carbon steel,alloy steel,stainless steel after QT would enchance mechanical property,improve strength,prolong working life,meet product;s requirements.
Products reference:
| Material | 4140,34CrNiMo6,18CrNiMo7-6,F22 |
| Forging equipment | 8000T open die hydropress |
| Application |
Large scale forging QT is widely used for all forging QT after rough machining,enhance mechanical property |
| Melting process | EF+LF+VD |
| Production process |
Forging+heat treatment+rough machining+QT+finish machining |
| Forging ratio |
≥3.5 |
| Appplicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS, IST, UL,CTI |
| Inspection |
Plant self inspection or third party inspection,shipment after all inspection items are qualified |
| Delivery term |
Rough machining(N+T);finish maching(Q+T) |
|
Test equipment |
Spectrograph,ut device,tensile and compact test machine,metalloscope,outside microscope,bore dial indicator,hardness test machine |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties
|
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo |
Others |
| 4140 | 0.38-0.43 | 0.15-0.35 | 0.60-0.90 | ≤0.035 | ≤0.040 | 0.80-1.10 | -- | 0.15-0.25 | - |
| 34CrNiMo6 | 0.30-0.38 | ≤0.040 | 0.50-0.80 | ≤0.035 | ≤0.035 | 1.30-1.70 | 1.30-1.70 | 0.15-0.30 | |
| 18CrNiMo7-6 | 0.15-0.21 | 0.17-0.35 | 0.50-0.90 | ≤0.025 | ≤0.025 | 1.50-1.80 | 1.40-1.70 | 0.25-0.35 |
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 4140 | Ø10 | 740~1000 | 450~850 | ≥12 | ≥25 | V | ≥40 | ≤250HBS |
| 34CrNiMo6 | Ø15 | 750-900 | 450-600 | ≥13 | ≥55 | V | -40℃≥20 | ≤269HBS |
| 18CrNiMo7-6 | Ø15 | ≥980 | ≥785 | ≥9 | ≥40 | V | ≥47 | ≤269HBS |
Process procedure:
Forging process flow quality control:
- Raw material steel ingot into warehouse(test the chemical content)
- Cutting→ Heating(Furnace temperture test)
- Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)
- Machining→ Inspection(UT,MT,Visal diamention, hardness)
- QT→ Inspection(UT, mechanical properties, hardness, grain size)
- Finish machining→ Inspection (dimension)
- Packing and Marking(steel stamp, mark)→ Storage Shipment
Commerce clause
| MOQ | 1PC |
| MAX weight | 50T |
| Delivery time | 10-60 days |
| Package | wooden palletm,steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Type of shipping |
By ocean,air |
Why choose HUIXUAN?
Advantage
- High-precision dimensional tolerance;
- Excellent mechanical properties;
- Produce different dimension based on customer’s requirements;
- Advanced manufacture equipments and inspection devices;
- Excellent technical personality;
- Control the production procedure strictly;
- Pay attention on the package protection;
- Quality full service.
