Q345D 42CrMo4 Accurate Steel Forging Solar Energy Generation Equipment Drive
Q345D 42CrMo4 Accurate Steel Forging Solar Energy Generation Equipment Drive
Products:

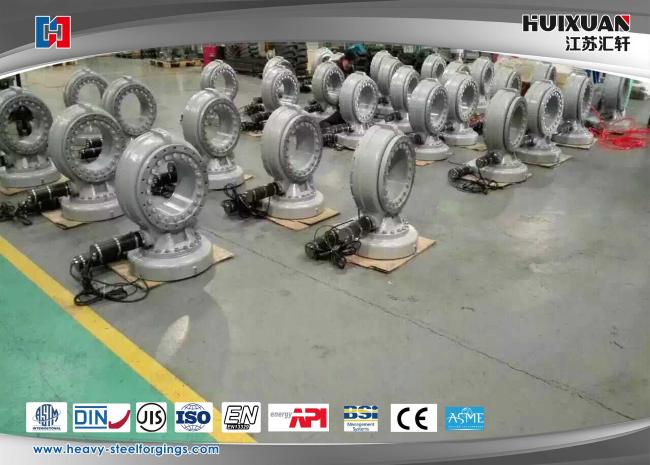

Swing drive bearing,solar energy swing drive,rotary reducer
Rotary reducer is driven gear by worm,this operation can reduce speed well,the internal ring of slewing bearing is fixed on the basement that has spindle function,the outside ring of slewing bearing is driven and rotated by motor,the out side ring output torque by flange,thus realize swing drive.slewing drive reducer adopts slewing bearing and worm structure,it conform to solar energy generation application,slewing bearing can afford big dial and axial load and upsetting moment’s anti wind ability,suitable for solar energy generatation application.
Products reference:
| Material | Q345D,50Mn,42CrMo4,17CrNiMo6 |
| Max dia | 1000MM |
| Application |
Solar energy generation equipment drive |
| Melting process | EF+LF+VD |
| Production process |
Forging+heat treatment+rough machining+roller bed harden |
| Forging |
≥5 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN ,DIN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
|
Certification authority |
ISO,BV,SGS, IST, UL,CTI |
| Delivery term |
Rough machining(N+T);finish machining(Q+T) |
|
Test equipment |
Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties
|
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 42CrMo4 | 0.38-0.43 | 0.15-0.35 | 0.60-0.90 | ≤0.035 | ≤0.040 | 0.80-1.10 | -- | 0.15-0.25 | - |
| Q345D | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 17CrNiMo6 | 0.15-0.21 | 0.17-0.35 | 0.50-0.90 | ≤0.025 | ≤0.025 | 1.50-1.80 | 1.40-1.70 | 0.25-0.35 | |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | 0.25 | 0.30 | -- | 0.48-0.56 |
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 42CrMo4 | Ø15 | 740~1000 | 450~850 | ≥12 | ≥25 | V | ≥40 | ≤250HBS |
| Q345D | Ø10 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥27 | ＝＝ |
| 18CrNiMo6 | Ø15 | ≥980 | ≥785 | ≥9 | ≥40 | V | ≥47 | ≤269HBS |
| 50Mn | Ø25 | ≥645 | ≥390 | ≥13 | ≥40 | V | ≥31 | ≤255HBS |
Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Commerce clause
| Max weight | 10T |
| MOQ | 1PC |
| Delivery time | 15-50 days |
| Package | Plywood case,wood pallet,steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Type of shipping |
By ocean,air |
Why choose HUIXUAN?
Advantage
- High-precision dimensional tolerance;
- Excellent mechanical properties;
- Produce different dimension based on customer’s requirements;
- Advanced manufacture equipments and inspection devices;
- Excellent technical personality;
- Control the production procedure strictly;
- Pay attention on the package protection;
- Quality full service.
