Industrial Alloy Steel Forgings Excavator Slewing Bearing ASME Standard
Industrial Alloy Steel Forgings Excavator Slewing Bearing ASME Standard
Products:
Excavator parts,slewing bearing of excavator,tower crane parts,slewing bearing of tower crane.

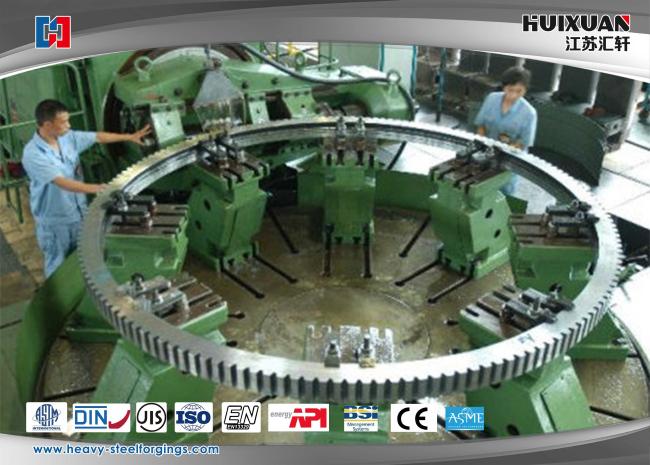

Slewing bearing is after machining process,widely used for industrial machinery,excavator,construction tower cane,mining equipment,cement machinery.
Products reference:
| Material | Q345D,50Mn,42CrMo4,17CrNiMo6 |
| Max dia | 5000MM |
| Application |
Slewing bearing is used for excavator,tower crane |
| Melting process | EF+LF+VD |
| Production process |
Forging+heat treatment+rough machining+roller bed harden+finish machining |
| Forging ratio |
≥5 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN ,DIN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS, IST, UL,CTI |
| Delivery term |
Rough machining(N+T);finish machining(Q+T) |
| Test equipment |
Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties
|
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 42CrMo4 | 0.38-0.43 | 0.15-0.35 | 0.60-0.90 | ≤0.035 | ≤0.040 | 0.80-1.10 | -- | 0.15-0.25 | - |
| Q345D | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 17CrNiMo6 | 0.15-0.21 | 0.17-0.35 | 0.50-0.90 | ≤0.025 | ≤0.025 | 1.50-1.80 | 1.40-1.70 | 0.25-0.35 | |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | 0.25 | 0.30 | -- | 0.48-0.56 |
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 42CrMo4 | Ø15 | 740~1000 | 450~850 | ≥12 | ≥25 | V | ≥40 | ≤250HBS |
| Q345D | Ø10 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥27 | ＝＝ |
| 18CrNiMo6 | Ø15 | ≥980 | ≥785 | ≥9 | ≥40 | V | ≥47 | ≤269HBS |
| 50Mn | Ø25 | ≥645 | ≥390 | ≥13 | ≥40 | V | ≥31 | ≤255HBS |
Commerce clause
| Max weight | 5T |
| MOQ | 1PC |
| Delivery time | 15-50 days |
| Package | Plywood case,Wooden pallet,Steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Type of shipping |
By ocean,air |
Process procedure:
Forging process flow quality control:
- Raw material steel ingot into warehouse(test the chemical content)
- Cutting→ Heating(Furnace temperture test)
- Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)
- Machining→ Inspection(UT,MT,Visal diamention, hardness)
- QT→ Inspection(UT, mechanical properties, hardness, grain size)
- Finish machining→ Inspection (dimension)

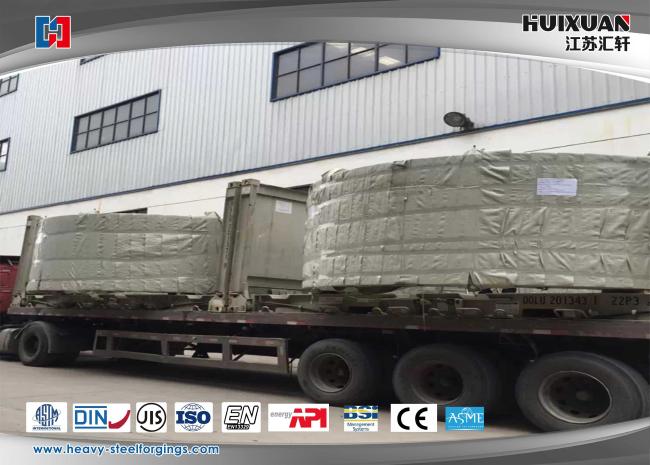

- Packing and Marking(steel stamp, mark)→ Storage Shipment
Why choose HUIXUAN?
- HUIXUAN is a directly professional manufacturer with over 10 years experiences specialized in producing custom forging machining parts.
- The company is able to meet your high quality standard, performs 100% QC test, certification:ISO9001-2008.
- HUIXUAN specializes in all kinds of material , surface treatment and heating treatment. Fast & flexible turnaroun,100% on-time delivery.
- HUIXUAN only takes reasonable profit , competitive price will be our greatest advantage.
- Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.
