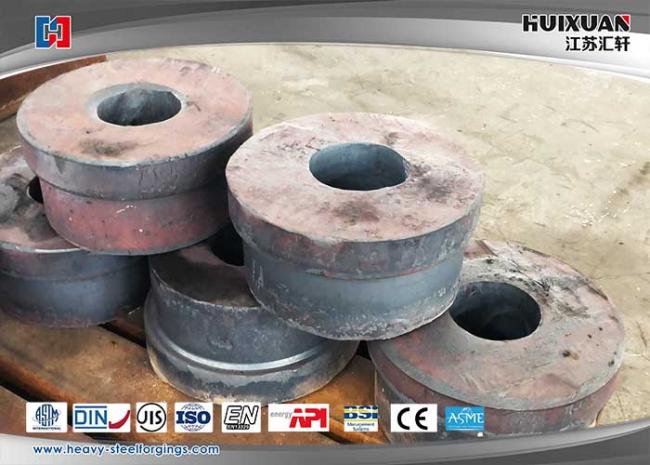

Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53
Ball Valve Bonnet Forging Stainless Steel A105 LF2 F304 304L F316 316L F51 F53
Products reference:
| Material | A105 LF2 A105 LF2 F304 304L F316 316L F51 F53 |
| Forging equipment | 4T,8T Hammer |
| Application |
|
| Melting process | EF BOF VIM |
| Process technology |
|
| Forging ratio | ＞4 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO9001,PED TÜV |
| Delivery term |
|
|
|
|
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties:
| chemical composition | C | Si | Mn | P | S | Cr | Ni | Mo | Cu | V |
| A105 | 0.19-0.23 | 0.15-0.3 | 0.9-1.05 | ≤0.035 | ≤0.03 | ≤0.1 | ≤0.4 | ≤0.12 | ≤0.4 | ≤0.05 |
| LF2 | 0.19-0.23 | 0.15-0.3 | 0.9-1.05 | ≤0.035 | ≤0.03 | ≤0.1 | ≤0.4 | ≤0.12 | ≤0.4 |
≤0.03 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.0-11.0 | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 |
16.0~18.0
|
10.0~14.0
|
2.00-3.00 | ||
| F51 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.03 | ≤0.02 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | ||
| F53 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 |
|
|
|
|
|
|
|
|
|
|
| A105 | 100*100*200 | ≥485 | ≥250 | ≥22 | ≥30 | / | 143-187 | |
| LF2 | 100*100*200 | 485-655 | ≥250 | ≥22 | ≥30 | V | ≥27J(-29℃) | 143-187 |
Commerce clause:
| Max weight | 10T |
| MOQ | 1PC |
| Delivery time | 30-50 days |
| Package | Steel frame |
| Delivery term | FOB;CIF |
| Payment term | T/T,LC |
| Transportation | vehicle,ocean,air |
keywords:
Bonnet is the key part of ball valve,ball valve’s definition:open and close part(sphere) is driven by valve rod,and to rotate around axis of ball valve,also used for fluid’s adjustment and control,common material are A105 and LF2,normally after forging it need to be machined at lathe,CNC machining center,drilling machine,also need to be tested at tensile and impact machine
Advantage:
High-precision dimensional tolerance;
Excellent mechanical properties;
Produce different dimension based on customer’s requirements;
Advanced manufacture equipments and inspection devices;
Excellent technical personality;
Control the production procedure strictly;
Pay attention on the package protection;
Quality full service.
