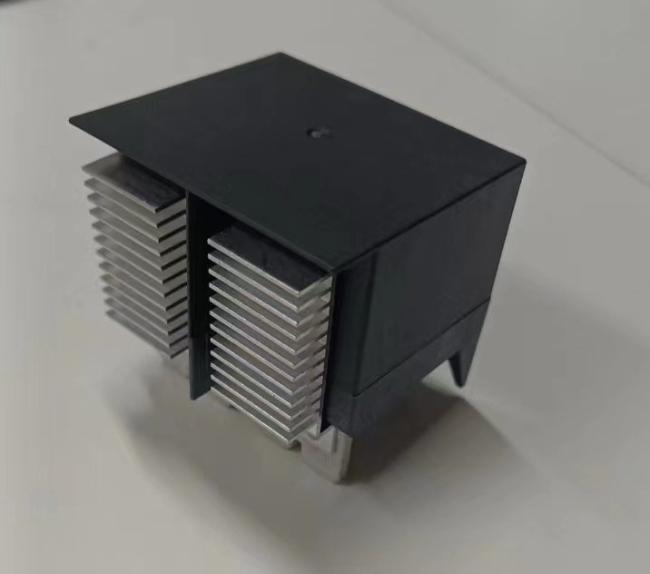

Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile
Price:
get latest price
MOQ:
200pcs
Delivery Time:
7-14 days
Brand:
NNC
Product Description

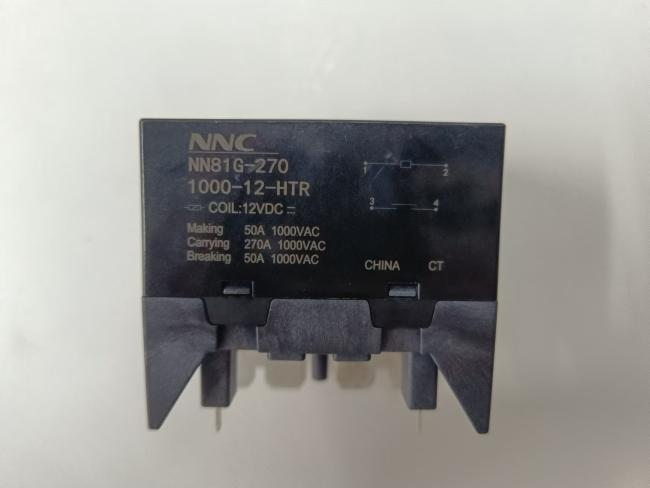

New Energy Relay NN81G-270
Specification
Main Contact Parameters
| structure | H | ||||||
| contact material | silver copper alloy | ||||||
| contact resistance |
≤1mΩ(at 20A 6VDC)
|
||||||
| rated load | AC1000V 270A | ||||||
| electrical life |
3x10^4 operations(50A 1000VAC)
50 operations(270A 1000VAC)
|
||||
| rated current | 270A | ||||
| min load current | 6VDC/20A | ||||
| mechanical life | 300,000 times | ||||
Coil Parameters
| Rated voltage (Vd.c) | 12 | ||
| Max operating voltage (Vd.c) | 9 | ||
| Max Release voltag (Vd.c) | 1.2 | ||
| Max Allowance Voltage(Vd.c.) | 14.4 | ||
| Coil Resistance (2) (1 ± 10%) | 28.8*(1±10%) | ||
| Coil power consumption(W) | 5 | ||
| Insulation resistance | between coil and contacts |
5000VAC (50/60Hz,1min)
|
||||||||
| Between main and auxiliary contacts |
2000VAC (50/60Hz,1min)
|
|||||||||
| Dielectric strength | between coil and contacts |
1000MΩ (500VDC)
|
||||||||
| Between main and auxiliary contacts |
1000MΩ (500VDC)
|
|||||||||
| operate time | Below the 30ms | |||||||||
| release time | Below the 10ms | |||||||||
| Vibration | sinusoidal vibration | 10-55 Hz double amplitude 1.5mm | ||||||||
| Strike | stability | 98 m/s² | ||||||||
| strength | 980 m/s² | |||||||||
| operating temperature | -40～+85℃ (No ice, no condensation) |
|||||||||
| operating humidity | 5～85%RH | |||||||||

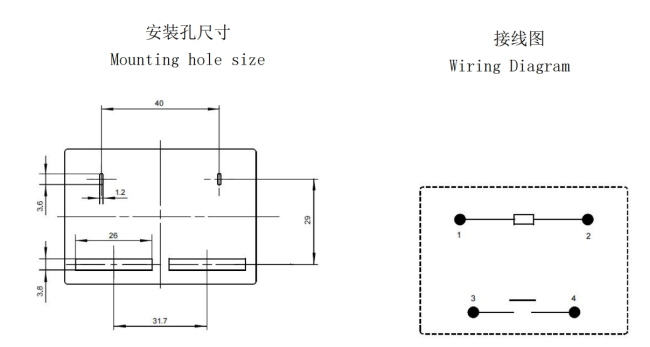

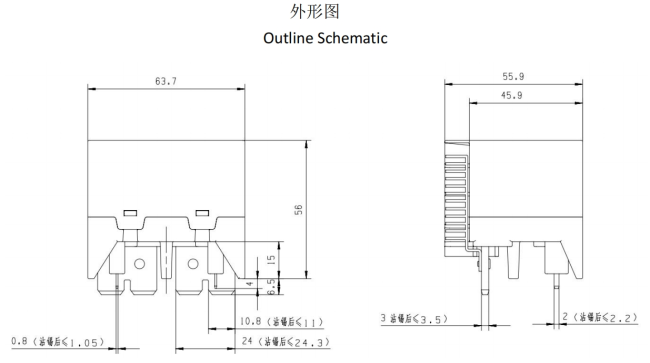

Product Diagram(mm)
