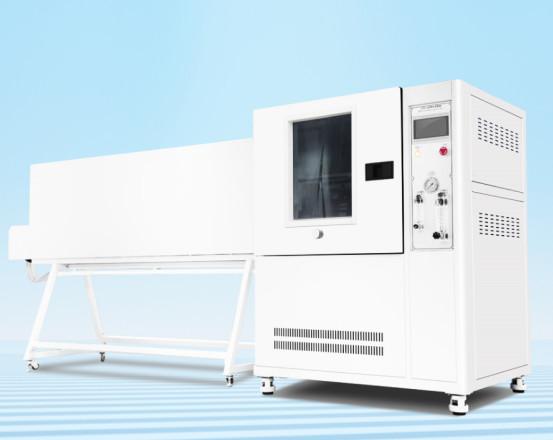

IE51 IPX123456 Comprehensive Waterproof Enviromental Chamber For Outdoor Lamp Enviromental Chamber
IE51 Comprehensive Waterproof Test Chamber For Outdoor Lamp Enviromental Chamber
Product Description:
Application areas: Waterproof Enviromental Chamber is used for outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main function of this equipment is to use it for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products under simulated climate conditions of rain, splashing, and spraying water. The physical and other related properties are tested. After testing, verification is used to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.
Implementation standards:
- Comply with IEC60529:1989 +A1:1999 +A2: 2013 "Degrees of protection provided by enclosures (IP Code)",
- GB4208-2017 "Enclosure Protection Level (IP Code)" Clauses 14.2.1, 14.2.2, 14.2.3, 14.2.4 and the requirements of Figure 3 and Figure 4.
- Suitable for IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 waterproof grade testing of products.
- The shell is made of domestic high-quality steel plates, and the surface is spray-painted, making it beautiful and durable.
- The inner box, turntable, swing tube, etc. are all made of SUS304# stainless steel plates to ensure that they will not rust after long-term use.
- Box structure; built-in water tank, recycled water; automatic control of water inflow, and low water level alarm detection
- There is a transparent observation window (made of tempered glass) on the door, and LED lighting is installed inside the box to facilitate observation of internal testing conditions.
- IPX1, 2: The drip box adopts vacuum design and is made of stainless steel; the nozzle contact position adopts a brass cone design to facilitate the installation of water spray nozzles.
- IPX1, 2: It has a compressed air drying function. After the test is completed, the excess water in the drip box can be drained out to avoid water accumulation and scaling that will block the pinholes. (Note: The user needs to provide air source)
- IPX3, 4: The swing tube is driven by a domestic high-quality stepper motor. The speed and angle of the swing tube are accurately adjustable and there is no out-of-step problem (out of step: it will cause the swing tube to move abnormally and hit the middle turntable axis, causing damage to the equipment)
- IPX5,6:Manufactured in accordance with the specifications of IEC60529 (as shown below)
![]()
Filtration measures: Standard high-precision filter can effectively filter impurities in tap water; the filter element can be replaced regularly.
Filtration measures: Standard high-precision filter can effectively filter impurities in tap water; the filter element can be replaced regularly.
Specifications:
| Parameter | Value |
| Inner box size:(W*D*H) | 900*900*1050mm |
| External dimensions:(W*D*H) | 1350*3700*1920mm |
| Turntable diameter: | ￠600mm |
| Maximum load-bearing capacity of turntable: | 50KG |
| Turntable lifting height: | 460-740mm(Table height from bottom) |
| Turntable tiltability: | 0°or15°(horizontal direction) |
| Turntable speed: | 1 -5r/min(Precisely adjustable) |
| Turntable rotation method: | Always forward rotation/alternating forward and reverse rotation/intermittent rotation |
| Flow adjustment method: | Manual adjustment is achieved using a flow meter with an adjustment panel |
| testing time: | 0-999 min |
| Total equipment quality: | 约300kg |
| IPX1,2 Section-Technical Parameters | |
| Drip board area: | 600*600mm |
| IPX12Nozzle hole size: | Dia 0.4mm |
| Distance between drip holes: | 20*20 mm |
| Rainfall: | IPX1=1mm/min；IPX2=3mm/min |
| Raindrop board lifting method: | Not liftable (fixed) |
| IPX3,4 Section-Technical Parameters | |
| Swing tube radius size: | R400mm |
| R400 Swing tube flow: | 1.1L/min±5%(IPX3)；1.8L/min±5%(IPX4) |
| Water spray hole size: | 0.4mm |
| Spray hole spacing: | 50mm |
| Swing tube inner diameter: | 15mm |
| Swing tube angle: | 120º(IPX3),350º(IPX4)or custom settings |
| Swing tube swing speed: |
240° round trip 4S, 720° round trip 12S (precise control) or customized
|
| IPX5,6 Section-Technical Parameters | |
| IPX5 Spray aperture: | 6.3mm |
| IPX6 Spray aperture: | 12.5mm |
| IPX5 Water jet flow: | 12.5±0.625 L/min |
| IPX6 Water jet flow: | 100±5 L/min |
| water pressure(Mpa): | Adjust water flow as specified |
| Spray distance: | 2.5 meters (distance between nozzle and turntable center) |
| Spray gun swing drive: |
stepper motor
|
| Water, electricity and gas parameters | |
| Power supply for test samples | 220V |
| Device power/power | 380V 50Hz 3.0KW(or specified) |
| Security protection function | Leakage protection, water shortage protection, short circuit protection |
| Factory configuration |
1. One operating manual; 2. One factory certificate; 3. One equipment warranty card; 4. One filter element; 5. 100 test needles; 6. 6 meters of water pipe (1 piece) |
| Water source requirements | 1. Users are required to configure a water source for the equipment at the installation site, with the water pressure not less than 0.2Mpa, and install a 4-point faucet. The faucet should be no more than 2 meters away from the equipment. |
Inner box pictures:
The swing pipe could be make as your size.
