Product Description:

Applications:

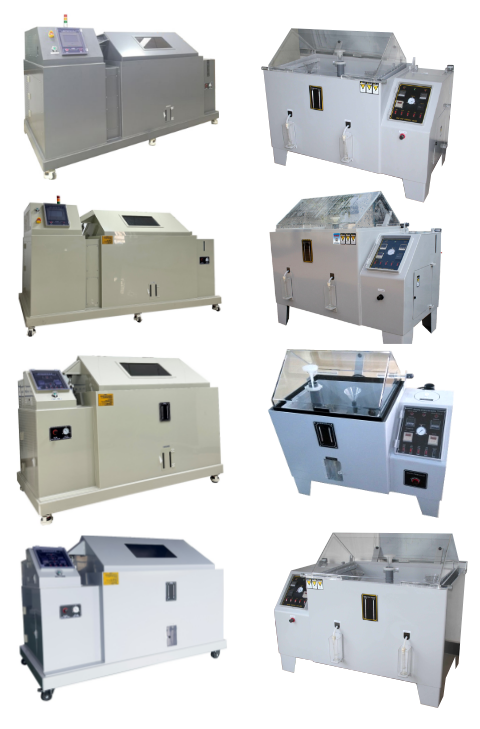

The INFINITY Salt Spray Test Chamber is a high-quality product designed to test the corrosion resistance of materials in various environments. This chamber is perfect for industrial settings, laboratories, and research facilities, allowing for precise and accurate testing of materials.

• IE4160L
• IE4190L
• IE41120L
• IE41160L
• IE41200L

• AC380V, 50Hz, 7KW
• AC380V, 50Hz, 9KW
• AC380V, 50Hz, 11KW
• AC380V, 50Hz, 13KW
• AC380V, 50Hz, 15KW

• Specification parameters:

  model	I E4160L	I E4190L	I E41120L	I E41160L	I E41200L
  Temperature range	5℃ ～ +85℃
  Temperature departure	±1℃
  Temperature fluctuation	±0.5℃
  Temperature uniformity	≦2.0℃
  Humidity range	20~100%R.H
  Humidity deviation	±2%R.H
  Relative humidity fluctuation	±2%R.H
  Humidity uniformity	±3%R.H
  Rising and cooling rate	RT →+85℃≤40 min RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).
  Effective inner capacity	150L	270L	576L	800L	1200L
  Internal box size: WxHxD(mm )	600*500*500	900*600*600	1200*1000*600	1600*1000*600	2000*1000*600
  Out box size: WxHxD(mm )	1780*950*1300	2080*1050*1350	2380*1450*1450	2780*1450*1450	3180*1450*1450

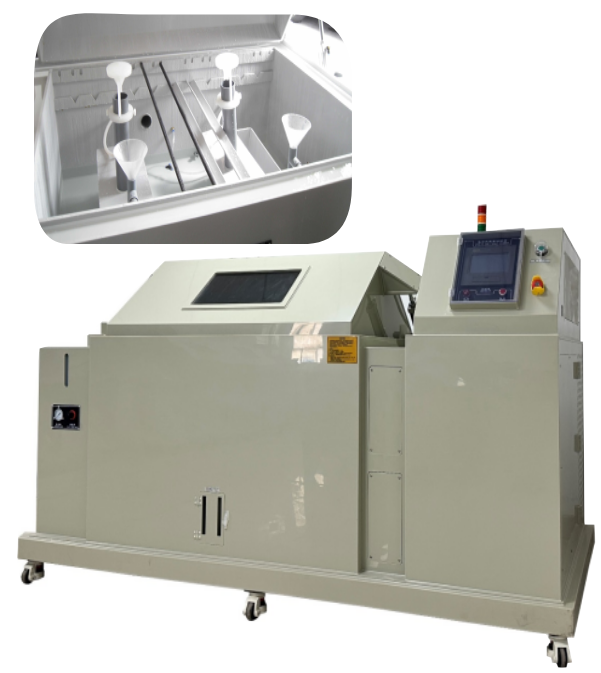

  Box structure	● Test chamber box: using PP polypropylene board, the thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory outer box: using PP polypropylene board, thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory sealing cover: using PP polypropylene plate, thickness of 10mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient clear observation of the test, temperature resistance of about 100 degrees.
  Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
  specimen holder	● The inner wall of PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● At the bottom of the test box, the PP plate punching sample placement platform. The uniform opening on the platform surface will discharge the spray liquid quickly, and the large sample can be placed on the platform for testing.
  refrigeration compressor	France taikang fully closed compressor
  cooling medium	Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
  Condenser mode	air-cooled
  Safety protection device	refrigeration system	Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection
  	test box	Adjustable overtemperature protection Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection
  	heating system	Heating pipe dry burning protection alarm Abnormal water supply alarm Abnormal drainage alarm
  	other	earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function
  weight (Kg)	About 300	About 400	About 500	About 600	About 700
  source	AC380V;50Hz;7KW	AC380;V50Hz;9KW	AC380;V50Hz;11KW	AC 380;V50Hz;13KW	AC 380;V50Hz;15KW



• Special designs can be made according to customer needs.
• PT100 temperature sensor with high precision and low maintenance.
• Manually and automatically add water according to the customer's installation place, making it easy to use.
• Independent adjustment of greenhouse and laboratory, with air door control connection in the middle for a perfect structure and simple maintenance.
• Energy-saving design with separate control for testing.
• Capable of salt spray neutral test, corrosion resistance test, drying test, moisture test, and static test. Can also perform salt spray, dry and wet, and static mixing test with automatic control.
• Can automatically cycle, continuous spray, and timing spray. No need to move products, making it easy to use for salt spray, wet heat, drying automatic circulation test.

• Test Chamber Box: Made of PP polypropylene board with a thickness of 10mm and temperature resistance of about 100 degrees.
• Laboratory Outer Box: Made of PP polypropylene board with a thickness of 10mm and temperature resistance of about 100 degrees.
• Laboratory Sealing Cover: Made of PP polypropylene plate with a thickness of 10mm, one-button automatic open cover, and transparent observation window. Equipped with a defogging device for convenient and clear observation of the test, with a temperature resistance of about 100 degrees.

The INFINITY Salt Spray Test Chamber is suitable for a wide range of applications, including but not limited to:

• Industrial settings: Used to test the corrosion resistance of materials used in various industries, such as automotive, aerospace, and construction.
• Laboratories: Used for research and development of new materials and coatings, as well as quality control of existing products.
• Research facilities: Used for advanced research on corrosion resistance and material performance in different environments.

The INFINITY Salt Spray Test Chamber can be used in various scenarios, such as:

• Testing facilities: The chamber can be used in testing facilities to simulate real-world environments and test the corrosion resistance of materials.
• Manufacturing plants: The chamber can be used in manufacturing plants to ensure the quality of products and prevent corrosion-related issues.
• Research laboratories: The chamber can be used in research laboratories to conduct advanced research on corrosion resistance and material performance.

With its high precision, easy operation, and versatile applications, the INFINITY Salt Spray Test Chamber is a must-have for any industry or research facility that deals with materials and corrosion resistance. Contact us now to learn more about this product and how it can benefit your business.

Customization:

Brand Name: INFINITY

Model Number: IE 41 Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Refrigeration compressor: France Taikang Fully Closed Compressor

Condenser mode: Air-cooled

Cooling medium: Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic

Test standards: GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment _ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test GBT2424.17-2008 Test Method For Salt Spray GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method GBT2423_4-2008 Test Method For Humid Heat Mixing IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (sodium Chloride Solution) IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

Features:

• Salt spray chamber with fog collector
• Salt spray fog test chamber
• Salt spray corrosion testing equipment
• Salt spray corrosion test chamber
• Special designs can be made according to customer needs
• PT 100 temperature sensor, with high precision and low maintenance
• Manually and automatically add water according to the customer's installation place, easy to use
• Adjustment greenhouse and laboratory independent, connected through air door control, perfect structure, easy maintenance
• Energy-saving design, controlled separately according to the test
• Can perform salt spray neutral test, corrosion resistance test, drying test, moisture test, and static test
• Can also perform salt spray, dry and wet, static mixing test with automatic control
• Can automatically cycle spray, continuous spray, and timing spray
• Does not require moving products, can realize salt spray, wet heat, and drying automatic circulation test, easy to use

Packing and Shipping:

Our Salt Spray Test Chamber (New) is carefully packaged and shipped to ensure safe delivery to our customers. Here is our standard packaging and shipping process:

• The Salt Spray Test Chamber (New) is first placed in a sturdy wooden crate to protect it during transit.
• The crate is then sealed to prevent any damage or tampering during shipping.
• Additional padding and cushioning materials are added to the crate to further protect the product.
• The crate is labeled with the necessary shipping information, including the product name, dimensions, and destination address.

We offer various shipping options to accommodate our customers' needs:

• For domestic orders, we typically use ground shipping services.
• For international orders, we offer both air and sea freight options.
• All shipments are tracked and insured to ensure safe and timely delivery.
• We work with reputable shipping companies to ensure the best rates and reliable service.
