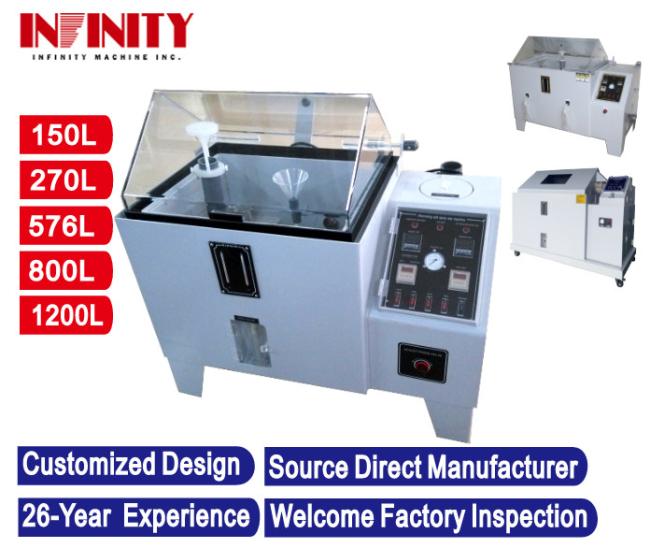

Product Description:

The Salt Spray Test Chamber is a highly efficient and advanced testing equipment designed to simulate the atmosphere salt droplets diffusion system. It is widely used in various industries such as electronics, electrician, automobile, motorcycle, hardware, plastic, FPC soft board, and more. This equipment is specifically designed to conduct salt spray corrosion tests on products after undergoing processes like electroplating, spray painting, paint coating, and anode treatment. By evaluating the surface corrosion resistance of these products, the Salt Spray Test Chamber plays a crucial role in ensuring product quality and durability.

The main design principle of this series of equipment is to simulate the natural salt spray environment in a controlled setting. This is achieved by creating a salt fog spray corrosion test chamber, where the products are exposed to a continuous spray of salt solution, as well as an intermittent spray at regular intervals. This simulated environment closely mimics the effects of salt spray corrosion that can occur in real-life conditions, allowing for accurate and reliable testing results.

• Salt spray fog test chamber for electronics, electrician, automobile, motorcycle, hardware, plastic, and FPC soft board industries
• Designed to simulate the atmosphere salt droplets diffusion system
• Widely used for testing products after electroplating, spray painting, paint coating, and anode treatment
• Allows for evaluation of surface corrosion resistance
• Continuous spray and intermittent spray modes for accurate simulation
• Available in different sizes to meet various testing needs
• Temperature fluctuation of only ±0.5℃ for precise testing conditions
• Power options of AC220V;50Hz;1.5KW, AC 220;V50Hz;2.5KW, AC 220;V50Hz;3.5KW, AC 220;V50Hz;4.5KW, and AC 380;V50Hz;5KW

• 150L
• 270L
• 576L
• 800L
• 1200L

The Salt Spray Test Chamber (New) is an essential testing equipment for industries that require high-quality and durable products. With its advanced design principle, accurate simulation of salt spray corrosion, and precise testing conditions, this equipment ensures that products meet the desired standards of surface corrosion resistance. Choose from a range of sizes and power options to suit your testing needs and ensure the reliability of your products.

Model	I E4460L	I E4490L		I E44120L	I E44160L	I E44200L
Laboratory temperature range	RT+5℃~60℃
Pressure barrel temperature range	RT+5℃~70℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦1.0℃
Salt mist settlement	1～3ml/h.80cm2
Spray pressure	1.00±0.01kgf/cm²
Spray way	Continuous spray + intermittent spray
Valid test capacity	150L	270L		576L	800L	1200L
Internal box size:WxHxD(mm )	600*450*400	900*600*500		1200*800*600	1600*1000*500	2000*1000*600
Out box size:WxHxD(mm )	1050*700*950	1400*850*1100		2080*1050*1300	2430*1250*1400	2730*1250*1400
Box structure	● Test room and outer boxes: the inner and outer boxes of the laboratory adopt A grade PVC polyethylene board, the thickness of the whole machine is 8mm, acid and base resistance and temperature resistance to 78℃. ● Laboratory sealing cover: laboratory sealing cover adopts A class PVC plate, thickness of 8mm, surround reinforcement of 13mm, acid and alkali resistance and temperature resistance of 78℃
Open cover way	Manual open cover		One-click automatic open-cover
Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
Specimen holder	The basket holder of the laboratory adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent.
Safety protection device	● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply.
Power	AC220V;50Hz;1.5KW	AC 220;V50Hz;2.5KW		AC 220;V50Hz;3.5KW	AC 220;V50Hz;4.5KW	AC 380;V50Hz;5KW



Customization:

• GB/T242317-2008
• GB/T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products
• GB/T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The
• GB/T10587-2006 Salt Spray Test Box
• GB105932-1990 Environmental Parameter Measurement Method Of Electrical And Electronic Products
• GB/T1765-1979 Test Of Damp Heat Resistance, Salt Spray Resistance And Hou Resistance (artificial Acceleration)
• GB/T242317-1993 Basic Environmental Test Procedures For Electronic And Electrical Products Test Ka: Test Methods For Salt Fog
• GB/T1771-2007 Determination Of Paint And Varnish Resistance For Neutral Salt Spray Test (NSS Test)
• GB5938-86 Test Method For Metal Plating And Chemical Treatment Of Light Industry Products
• GB/T1771-91 Measurement Of Paint And Varnish. Acetate Fog Test (AASS Test)

• IE4460L
• IE4490L
• IE44120L
• IE44160L
• IE44200L

• Salt spray fog test chamber
• Salt spray corrosion testing equipment
• Environmental salt spraying tester
• Salt spray chamber
• Salt spray testing machine
• Salt spray testing equipment
• Accelerated corrosion test machine
• Salt fog corrosion testing machine
• Salt spray corrosion chamber
• Salt spray corrosion test equipment



Packing and Shipping:

Packaging and Shipping:
The salt spray test chamber (new) will be packaged carefully before shipping. It will be covered with PE film and then placed in a wooden box. The box will be securely fastened with straps to prevent any damage during transportation. A packing list and invoice will also be included in the package.

Shipping Methods:
1. Express Delivery: The chamber can be shipped via express delivery, such as DHL, UPS, or FedEx. This method is recommended for urgent and small orders.
2. Air Freight: For larger orders, air freight can be used for faster delivery.
3. Sea Freight: Sea freight is the most economical option for shipping the chamber. It is suitable for large and heavy orders.

Shipping Time:
The shipping time will depend on the shipping method chosen and the destination. Generally, express delivery takes 3-5 days, air freight takes 5-7 days, and sea freight takes 15-30 days.

Customs Clearance:
We will provide all necessary documents and assist with customs clearance to ensure a smooth delivery process. However, any additional costs or delays due to customs procedures are the responsibility of the buyer. Please make sure to provide accurate and complete information for customs declaration.

Important Note:
Please carefully inspect the package upon delivery and report any damages or discrepancies to the shipping company immediately. We are not responsible for any damages that occur during transportation and handling by the shipping company.
