Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester
Price:
Negotiate
MOQ:
1
Delivery Time:
35-40 days after order confirmed
Brand:
Infinity Machine Inc.
Product Description
Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements
Automotive Cables Cyclic Bending Fatigue Test Machine
Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards
Purpose and Application
This cyclic bending test machine evaluates the bending fatigue performance of various cable types including:
- Multi-conductor cables
- Communication cables
- Data cables
- Robot cables
- Automotive cables
- Earphone wires
The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.
Compliance Standards
- ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
- ISO 19642-2:2019 & ISO 19642-2:2023
- ISO 14572
- GB/T 25085.2--2024
- SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | C5092 |
| Test Amount | 2 PCS |
| Test Speed | 10~60rpm±2cpm (Frequent user of 13rpm) |
| Angle Range | 90° |
| Min Display Angle | ±1° |
| Testing Cycles | 1～999,999 times |
| Guide Wheel Radius | R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets |
| Diameter of Rotation Plate | 275mm |
| Weights | 100g, 200g, 500g, 1000g (or customize) |
| Dimension (W×D×H) | 1280×724×1320mm |
| Weight | 350kg |
| Power Supply | Single phase AC220V / AC120V 50/60Hz 5A or specified by user |

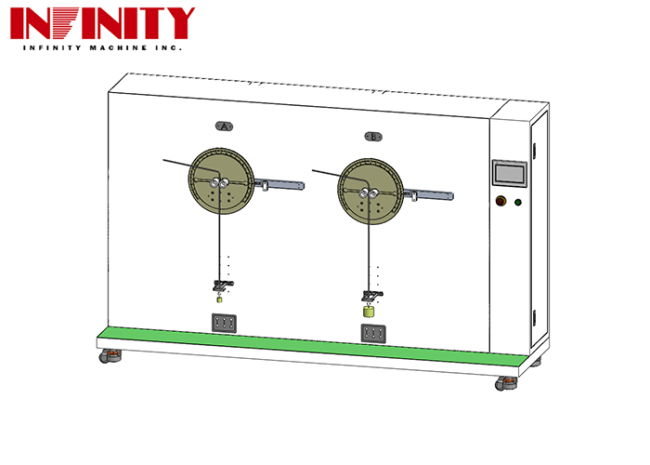

Product Appearance
Packaging and ShippingProduct Packaging
Automotive cables cyclic bending testing equipment is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.
Shipping
We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
