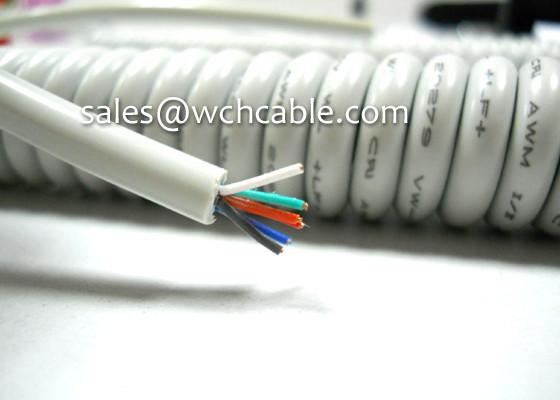

UL20279 (26AWG) 5 Conductors Waterproof TPU Spiral Cable Grey Jacket Low Voltage 30V
Price:
USD 0.12 per piece
MOQ:
200 pcs per box
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description
UL Style Description: UL20279 (26AWG) 5 Conductors Waterproof TPU Spiral Cable
Rating: 80 deg C, 30 Vac, Horizontal flame
Conductor Size: 26AWG
Conductor Quantity: 2 ~ 50 cores
Insulation Material: PP
Jacket Material: Extruded TPU Grey Color
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal wiring or external interconnection of appliances or electronic equipment.
| Approval Style Number | Cores | Conductor | Insulation Thickness |
Nom.Dia | Jacket Thickness | Overall Diameter |
Conductor Resistance |
|
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
| UL20279 +CUL |
2C | 26 | 7/0.160 | 0.25 | 1.00 | 0.85 | 4.00 | 150.00 |
| 3C | 26 | 7/0.160 | 0.25 | 1.00 | 0.85 | 4.30 | 150.00 | |
| 4C | 26 | 7/0.160 | 0.25 | 1.00 | 1.05 | 4.90 | 150.00 | |
| 5C | 26 | 7/0.160 | 0.25 | 1.00 | 1.05 | 5.30 | 150.00 | |
| 6C | 26 | 7/0.160 | 0.25 | 1.00 | 1.05 | 5.70 | 150.00 | |
tag: UL20279
