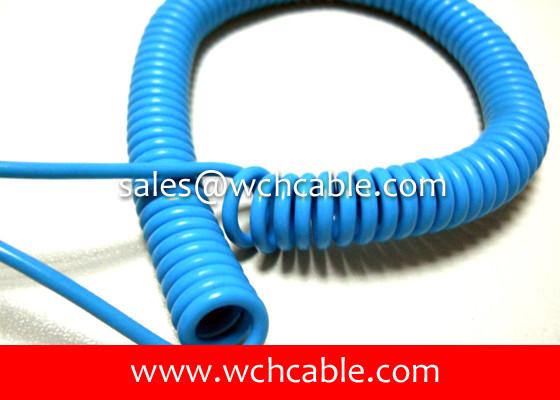

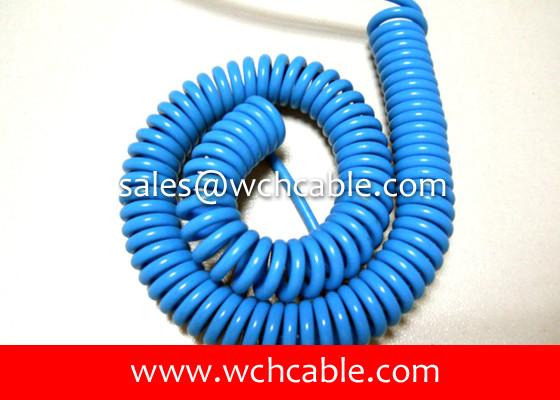

China Made UL Verified TPU Flexible Spiral Cable By High Purity Copper Conductor
Price:
USD 0.12 per piece
MOQ:
200 pcs per box
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description
China Made UL Verified TPU Flexible Spiral Cable By High Purity Copper Conductor
Rating: 80 deg C, 600 Vac, Horizontal flame
Conductor Size: 30~16AWG
Conductor Quantity: 2 ~ 50 cores
Insulation Material: PP
Jacket Material: Polyurethane TPU
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal wiring or external interconnection of appliances or electronic equipment.
| Cable Type | Cores | Conductor | Insulation Thickness |
Nom.Dia | Shield Coverage | Jacket Thickness | Overall Diameter |
Conductor Resistance |
|
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| Spiral Cable | 2C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 6.00 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 6.30 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 6.40 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 6.60 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 7.00 | 59.40 | ||
| 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 7.40 | 36.70 | ||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 8.00 | 23.20 | ||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 10.20 | 14.60 | ||
| Spiral Cable | 3C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 7.90 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 8.10 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 8.30 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 8.50 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 8.90 | 59.40 | ||
| 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 9.40 | 36.70 | ||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 10.00 | 23.20 | ||
| Spiral Cable | 4C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 8.10 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 8.30 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 8.60 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 8.90 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 9.30 | 59.40 | ||
| 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 9.80 | 36.70 | ||
| Spiral Cable | 5C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 8.40 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 8.70 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 8.80 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 9.20 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 9.80 | 59.40 | ||
| Spiral Cable | 6C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 8.80 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 9.10 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 9.40 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 9.70 | 94.20 | ||
