Halogen Free XLPE Flat Ribbon Cable UL4478 #24AWG 10Pins 2.54mm Pitch VW-1
Price:
USD 0.3215 per meter
MOQ:
1220 meters
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description

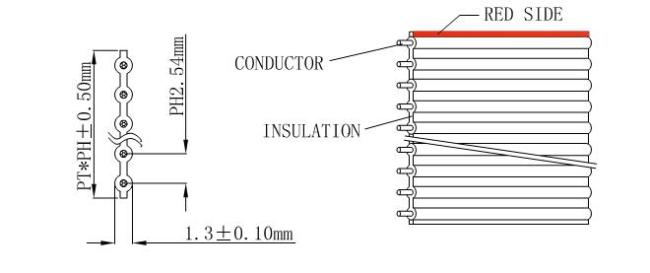

Halogen Free XLPE Flat Ribbon Cable UL4478 #24AWG 10Pins 2.54mm Pitch VW-1
WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly
| Conductor | Specification | (AWG) | 24 | ||
| Section Area | (mm²) | 0.2199 | |||
| Material | Tinned stranded copper | ||||
| Configuration | (mm) | TS7/0.20±0.007 | |||
| Insulation | Ave Thickness | (mm) | 0.32 | ||
| Min Thickness | (mm) | 0.27 | |||
| Over Diameter | (mm) | 1.30±0.10 | |||
| Material | XLPE (RoHS) | ||||
| Colour | 8002K Grey | ||||
| Electrical Capability |
Rated Temperature | (℃) | 105 | ||
| Rated Voltage | (V) | 300 | |||
| Conductor Resistance | (Ω/KM 20℃) | 94.2 | |||
| Insulation Resistance | (MΩ/KM 20℃) | 10 | |||
| Flammability | UL Fire Resistant | VW-1 | |||
| CSA Fire Resistant | FT-1 | ||||
| Approval | UL Style Number | 4478 | |||
| CSA Standard | I / A | ||||
| Based Standard | Lead Free, Halogen Free | ||||
| Environmental Standard | RoHS & Reach Compliant | ||||
