300V TPE Curly Cable UL20841 24AWG 4C OD5.1mm VW-1 Black L=122.2mm
Price:
USD0.1512
MOQ:
100 PCS
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description

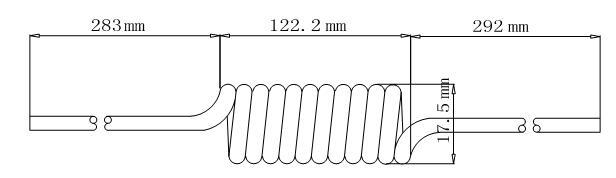

| Spiral Cable Construction |
Spiral Length (unexpanded) | (mm) | 122.2 |
| Straight Ends | (mm/mm) | 283/292 | |
| Extension Ratio | 1 : 3.5 | ||
| Spiral Outer Ø | (mm) | 17.50 | |
| Tail Angle | 180 degree | ||
| End Treatment | Cut Flat | ||
| Electrical Capability |
Working Voltage | (V) | 300 |
| Temp Range | (°C) | -40 to +80 | |
| Test Voltage | (V) | 2000/3000 | |
| Nominal Voltage | (V) | 300 | |
| Conductor Resistance | (Ω/KM 20°C) | 94 | |
| Insulation Resistance | (MΩ/KM 20°C) | 100 | |
| Standard & Use |
UL Marking | Per UL20841 | |
| CUL Standard | II A | ||
| Flammability | VW-1, FT1 | ||
| Raw Cable Construction |
Conductor Size | (AWG) | 24 |
| Insulation Material | PP (RoHS) | ||
| Insulation Diameter | (mm) | 1.30 | |
| Conductor Quantity | 4 Cores | ||
| Assembly | Stranded in layers | ||
| Overall Diameter | (mm) | 5.10 | |
| Jacket Material | Extruded TPE (RoHS) | ||
| Surface Effect | Black |
