XLPE Flat Ribbon Cable UL21016 #28AWG 10Pins 0.90mm Pitch FT2
Price:
USD 0.2086 per meter
MOQ:
1220 meters
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description

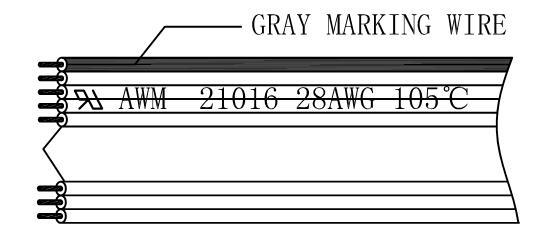

XLPE Flat Ribbon Cable UL21016 #28AWG 10Pins 0.90mm Pitch FT2
WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly
| Conductor | Specification | (AWG) | 28 |
| Section Area | (mm²) | 0.089 | |
| Material | Tinned Stranded Copper Wire | ||
| Configuration | (mm) | TS7/0.127±0.007 | |
| Insulation | Pitch Distance | (mm) | 0.90 |
| Ave Thickness | (mm) | 0.23 | |
| Min Thickness | (mm) | 0.20 | |
| Over Diameter | (mm) | 0.90±0.10 | |
| Material | XLPE (RoHS) | ||
| Colour | 8002K Gray | ||
| Electrical Capability |
Rated Temperature | (℃) | 105 |
| Rated Voltage | (V) | 300 | |
| Conductor Resistance | (Ω/KM 20℃) | 150.0 | |
| Insulation Resistance | (MΩ/KM 20℃) | 100 | |
| Flammability | UL Fire Resistant | -- | |
| CSA Fire Resistant | FT2 | ||
| Approval | UL Style Number | 21016 | |
| CSA Standard | I / A | ||
| Based Standard | Lead Free | ||
| Environmental Standard | RoHS & Reach Compliant |
