XLPE Flat Ribbon Cable UL21016 #30AWG 6Pins 0.75mm Pitch VW-1
Price:
USD 0.1586 per meter
MOQ:
1220 meters
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description

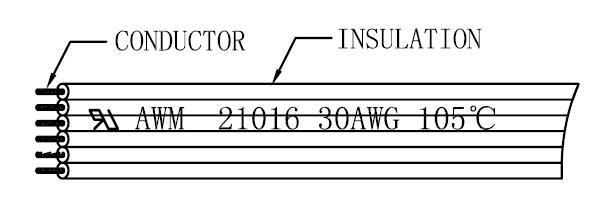

XLPE Flat Ribbon Cable UL21016 #30AWG 6Pins 0.75mm Pitch VW-1
WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly
| Technical Parameters | |||
| Conductor | Cores Number | 6 Pins | |
| Specification | (AWG) | 30 | |
| Section Area | (mm²) | 0.055 | |
| Material | Tinned stranded copper | ||
| Configuration | (mm) | TS7/0.10±0.008 | |
| Stranded Diameter | (mm) | 0.30 | |
| Width | (mm) | 4.50±0.30 | |
| Insulation | Ave Thickness | (mm) | 0.21 |
| Min Thickness | (mm) | 0.18 | |
| Over Diameter | (mm) | 0.75±0.10 | |
| Material | XL-PE (RoHS) | ||
| Colour | Black with White Marking | ||
| Electrical Capability |
Rated Temperature | (℃) | 105 |
| Rated Voltage | (V) | 300 | |
| Conductor Resistance | (Ω/KM 20℃) | 381.0 | |
| Insulation Resistance | (MΩ/KM 20℃) | 100 | |
| Other Properties |
Fire Retardance | VW-1 | |
| UL Style Number | 21016 | ||
| Environmental Standard | Lead Free | ||
| RoHS & Reach Compliant | |||
