105C 300V Special PVC Sheathed Round Flat Ribbon Cable Aluminum Foil Screened
Price:
USD0.03-0.32 per meter
MOQ:
1220 meters
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description

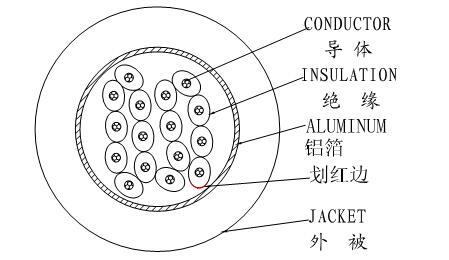

105C 300V Special PVC Sheathed Round Flat Ribbon Cable Aluminum Foil Screened
Conductor: High Purity Copper Wire
Rated temperature: 105C
Rated voltage: 300V
Insulation: Eco-friendly PVC
Rated temperature: 105C
Rated voltage: 300V
Insulation: Eco-friendly PVC
Jacket: Eco-friendly PVC
Feature: UL & CSA Approval, RoHS Guaranteed.
Reference Standard: UL758, UL1581, CSA22.2.
Reference Standard: UL758, UL1581, CSA22.2.
Style Number: UL2651
Manufacturer: WCH Cable Industrial Co., Ltd.
Origin: Dongguan, China
Origin: Dongguan, China
Custom Make Service is Available.
Please consult our customer service for discussion of what you like.
WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly
| Technical Parameters | |||||
| Conductor | Cores Number | 16 Pins | |||
| Specification | (AWG) | 26 | |||
| Section Area | (mm²) | 0.1492 | |||
| Material | Tinned stranded copper | ||||
| Configuration | (mm) | TS19/0.10 | |||
| Stranded Diameter | (mm) | 0.5035 | |||
| Insulation | Ave Thickness | (mm) | 0.25 | ||
| Min Thickness | (mm) | 0.21 | |||
| Over Diameter | (mm) | 0.9~1.0 | |||
| Material | PVC (RoHS) | ||||
| Colour | Grey | ||||
| Copper Foil | Material | One-side Copper Foil | |||
| Jacket | Ave Thickness | (mm) | 0.80 | ||
| Min Thickness | (mm) | 0.64 | |||
| Over Diameter | (mm) | 7.0 | |||
| Material | PVC (RoHS) | ||||
| Colour | Blue | ||||
| Electrical Capability |
Rated Temperature | (℃) | 105 | ||
| Rated Voltage | (V) | 300 | |||
| Conductor Resistance | (Ω/KM 20℃) | 150 | |||
| Insulation Resistance | (MΩ/KM 20℃) | 10 | |||
| Other Properties |
Fire Retardance | VW-1 | |||
| UL Style Number | 2651 | ||||
| Environmental Standard | Lead Free | ||||
| RoHS & Reach Compliant | |||||
