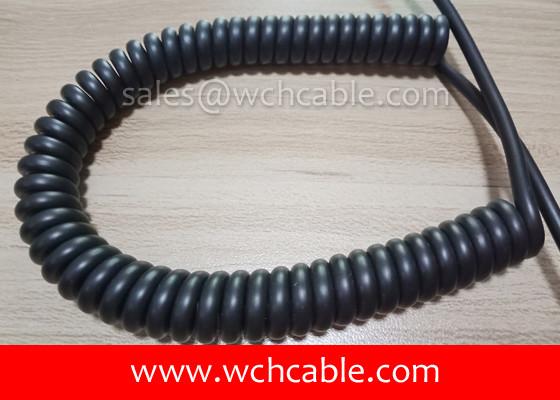

UL21139 O&M Manufactured Spiral Cable PUR Sheath Rated 60C 300V
Price:
USD 0.62 per piece
MOQ:
200pcs
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description
UL21139 O&M Manufactured Spiral Cable PUR Sheath Rated 60C 300V
Conductor: High Purity Annealed Tinned Stranded Copper Wire
Insulation: PP / Polypropylene
Jacket: PUR / Thermoplastic Polyurethane
Rated Temperature: 60 Deg C
Rated Voltage: 300V
Applied Standard: UL758, UL21139
| Style Number | Core Quantity | Copper Conductor | Insulation Thickness | Insulation Diameter | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
| UL21139 | 2C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 3.60 | 381.00 |
| 2C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 3.90 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 4.00 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 4.20 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 4.60 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.23 | 1.50 | 0.76 | 5.00 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.23 | 1.80 | 0.76 | 5.60 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.23 | 2.00 | 0.76 | 7.80 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 5.50 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 5.70 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 5.90 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 6.10 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 6.50 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.23 | 1.50 | 0.76 | 7.00 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.23 | 1.80 | 0.76 | 7.60 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 5.70 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 5.90 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 6.20 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 6.50 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 6.90 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.23 | 1.50 | 0.76 | 7.40 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 6.00 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 6.30 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 6.40 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 6.80 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 7.40 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 6.40 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 6.70 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 7.00 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 7.30 | 94.20 | |
Tag: pur cable, pur sheath cable, ul21139
