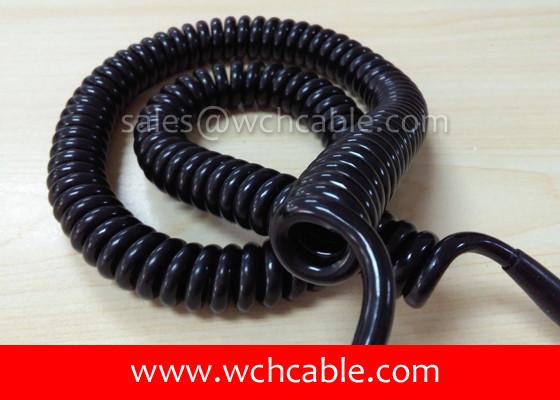

UL20235 Broadcast Industry Connected Spiral Cable
Price:
USD0.251 per piece
MOQ:
200 pieces
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description
UL20235 Broadcast Industry Connected Spiral Cable
Conductor material: extremely high purity copper wire strands, bare or tinned, optional;
Insulation material: PP, SR-PVC, PE, TPE, TPU, PUR, FRPE, etc;
Internal wires quantity: 2C to 50C twisted;
Jacket material: quality thermoplastic TPU.
Application: energy data transmission;
Curly cable rated: 80°C, 600V.
| Style Number | Core Quantity | Conductor Gauge | Conductor Strands | Insulation Thickness | Insulation Diameter | Jacket Thickness | Overall Diameter | Conductor Resistance |
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
| UL20235 | 2C | 30 | 7/0.100 | 0.76 | 1.90 | 1.15 | 6.70 | 381.00 |
| 2C | 28 | 7/0.127 | 0.76 | 2.00 | 1.15 | 7.00 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.76 | 2.10 | 1.15 | 7.10 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.76 | 2.20 | 1.15 | 7.30 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.76 | 2.40 | 1.15 | 7.70 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.76 | 2.50 | 1.15 | 8.10 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.76 | 2.80 | 1.15 | 8.70 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.76 | 3.10 | 1.15 | 10.90 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.76 | 1.90 | 1.15 | 8.60 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.76 | 2.00 | 1.15 | 8.80 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.76 | 2.10 | 1.15 | 9.00 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.76 | 2.20 | 1.15 | 9.20 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.76 | 2.40 | 1.15 | 9.60 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.76 | 2.50 | 1.15 | 10.10 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.76 | 2.80 | 1.15 | 10.70 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.76 | 1.90 | 1.15 | 8.80 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.76 | 2.00 | 1.15 | 9.00 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.76 | 2.10 | 1.15 | 9.30 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.76 | 2.20 | 1.15 | 9.60 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.76 | 2.40 | 1.15 | 10.00 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.76 | 2.50 | 1.15 | 10.50 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.76 | 1.90 | 1.15 | 9.10 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.76 | 2.00 | 1.15 | 9.40 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.76 | 2.10 | 1.15 | 9.50 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.76 | 2.20 | 1.15 | 9.90 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.76 | 2.40 | 1.15 | 10.60 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.76 | 1.90 | 1.15 | 9.50 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.76 | 2.00 | 1.15 | 9.80 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.76 | 2.10 | 1.15 | 10.10 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.76 | 2.20 | 1.15 | 10.40 | 94.20 |
