UL20233 Gas Resistant TPU Sheathed Spiral Cable

Price Negotiable

Price: USD0.33 per piece

MOQ: 200pcs

Delivery Time: 9 days for ready goods

Brand: WCH Cable

Product Description

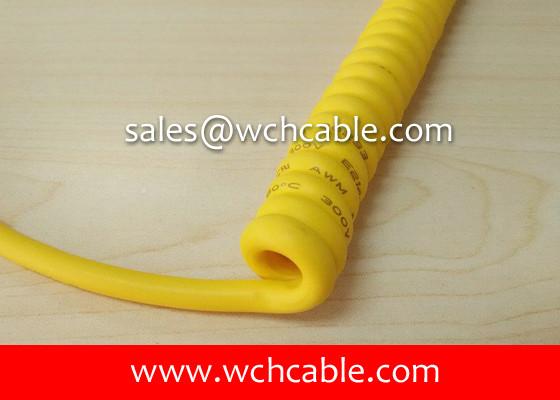

UL20233 Gas Resistant TPU Sheathed Spiral Cable

Spiral cable style: UL20233.

Rated temperature: 80°C.

Rated voltage: 300V.

Feature: Gas resistant, best for industry wiring.

Sheath material: Thermoplastic TPU.

Flammability: UL VW-1 passed.

Uniform insulation thickness for smooth stripping.

UL safety marked upon cable jacket surface.

Highly flexible and long flex life.

Spiral Style	Conductor Quantity	Conductor Size	Conductor Strands	Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Spiral Style	Conductor Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20233	3C	28	7/0.127	0.23	0.90	0.76	3.56	239.00
	3C	26	7/0.16	0.23	1.00	0.76	3.78	150.00
	3C	24	11/0.16	0.23	1.10	0.76	3.99	94.20
	3C	22	17/0.16	0.23	1.30	0.76	4.42	59.40
	3C	20	21/0.178	0.23	1.50	0.76	4.85	36.70
	3C	18	34/0.178	0.23	1.70	0.76	5.28	23.20
	3C	16	26/0.254	0.23	2.10	0.76	6.15	14.60
	4C	28	7/0.127	0.23	0.90	0.76	3.79	239.00
	4C	26	7/0.16	0.23	1.00	0.76	4.03	150.00
	4C	24	11/0.16	0.23	1.10	0.76	4.28	94.20
	4C	22	17/0.16	0.23	1.30	0.76	4.76	59.40
	4C	20	21/0.178	0.23	1.50	0.76	5.24	36.70
	4C	18	34/0.178	0.23	1.70	0.76	5.72	23.20
	4C	16	26/0.254	0.23	2.10	0.76	6.69	14.60
	5C	28	7/0.127	0.23	0.90	0.76	4.05	239.00
	5C	26	7/0.16	0.23	1.00	0.76	4.32	150.00
	5C	24	11/0.16	0.23	1.10	0.76	4.59	94.20
	5C	22	17/0.16	0.23	1.30	0.76	5.13	59.40
	5C	20	21/0.178	0.23	1.50	0.76	5.67	36.70
	5C	18	34/0.178	0.23	1.70	0.76	6.21	23.20
	5C	16	26/0.254	0.23	2.10	0.76	7.29	14.60
	6C	28	7/0.127	0.23	0.90	0.76	4.32	239.00
	6C	26	7/0.16	0.23	1.00	0.76	4.62	150.00
	6C	24	11/0.16	0.23	1.10	0.76	4.92	94.20
	6C	22	17/0.16	0.23	1.30	0.76	5.52	59.40
	6C	20	21/0.178	0.23	1.50	0.76	6.12	36.70
	6C	18	34/0.178	0.23	1.70	0.76	6.72	23.20
	6C	16	26/0.254	0.23	2.10	0.76	7.92	14.60
	7C	28	7/0.127	0.23	0.90	0.76	4.37	239.00
	7C	26	7/0.16	0.23	1.00	0.76	4.68	150.00
	7C	24	11/0.16	0.23	1.10	0.76	4.98	94.20
	7C	22	17/0.16	0.23	1.30	0.76	5.59	59.40
	7C	20	21/0.178	0.23	1.50	0.76	6.20	36.70
	7C	18	34/0.178	0.23	1.70	0.76	6.81	23.20
	7C	16	26/0.254	0.23	2.10	0.76	8.04	14.60
	8C	28	7/0.127	0.23	0.90	0.76	4.56	239.00
	8C	26	7/0.16	0.23	1.00	0.76	4.89	150.00
	8C	24	11/0.16	0.23	1.10	0.76	5.21	94.20
	8C	22	17/0.16	0.23	1.30	0.76	5.87	59.40
	8C	20	21/0.178	0.23	1.50	0.76	6.52	36.70
	8C	18	34/0.178	0.23	1.70	0.76	7.17	23.20
	9C	28	7/0.127	0.23	0.90	0.76	4.74	239.00
	9C	26	7/0.16	0.23	1.00	0.76	5.09	150.00
	9C	24	11/0.16	0.23	1.10	0.76	5.43	94.20
	9C	22	17/0.16	0.23	1.30	0.76	6.12	59.40
	9C	20	21/0.178	0.23	1.50	0.76	6.82	36.70
