UL Rubber Cable SOOW 18AWGx4C
Price:
USD0.222
MOQ:
3050 meters
Delivery Time:
9 days for ready goods
Brand:
WCH Cable
Product Description

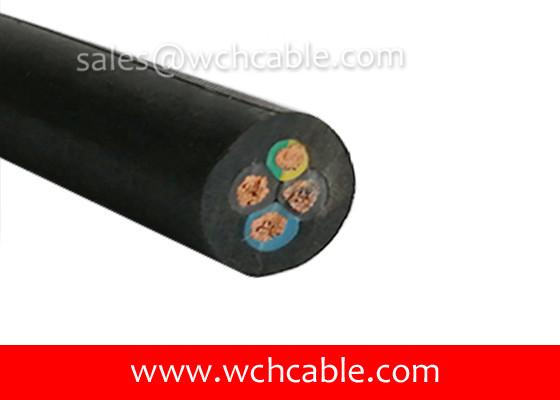

UL Rubber Cable SOOW 18AWGx4C
Safety approval style: SOOW
Reference standard: UL62, UL1581
Rated temperature: 60°C, 75°C, 90°C, 105°C
Rated voltage: 600V
Insulation: EPDM rubber
Outer sheath: Neoprene rubber.
Application: indoors and outdoors, industry equipments and devices under high humidity or water condition.
| Conductor | Specification | (AWG) | 18 |
| Section Area | (mm²) | 0.8244 | |
| Material | Bare Stranded Copper | ||
| Configuration | (mm) | AS41/0.16±0.007 | |
| Conductor Quantity | 4C | ||
| Insulation | Average Thickness | (mm) | 0.76 |
| Minimum Thickness | (mm) | 0.65 | |
| Over Diameter | (mm) | 2.80 | |
| Material | EPDM (RoHS) | ||
| Colour | Per request | ||
| Jacket | Average Thickness | (mm) | 1.52 |
| Minimum Thickness | (mm) | 1.22 | |
| Overall Diameter | (mm) | 9.95±0.30 | |
| Material | CPE Rubber (RoHS) | ||
| Colour | Black | ||
| Electrical Capability |
Rated Temperature | (℃) | 105 |
| Rated Voltage | (V) | 600 | |
| Rated Currency | (A) | 10 | |
| Conductor Resistance | (Ω/KM 20℃) | 23.20 | |
| Insulation Resistance | (MΩ/KM 20℃) | >2.50 | |
| Flammability | Fire Retardance | VW-1 | |
| CUL FT1 | |||
| Approval | UL Style Number | SOW | |
| Reference Standard | UL 62 | ||
| Environmental Standard | Lead Free | ||
| RoHS & Reach Compliant |
