SPT-900SE trailer mounted drilling rig for uranium extraction in Uzbekistan
| 型 号 type | SPT-900SE |
| 钻孔深度 Drilling depth(φ89) (m) | 900 |
| 转盘通径 Turntable diameters (mm) | φ600 |
| 转盘最大扭矩 Maximum torque turntable (kN.m) | 12 |
| 转盘转速(正反转) Rotary speed (r/min) | 43,69,101,139 |
| 主卷扬最大提升力 Main hoist maximum lifting capacity(kN) | 50 |
| 副卷扬最大提升力Vice hoist maximum lifting capacity (kN) | 50 |
| 提升速度 Lifting speed (m/s) | 0.9,1.4,2.9 |
| 液压系统额定压力Hydraulic system rated pressure (Mpa) | 20 |
| 配套泥浆泵型号 Type of mud pump | 3NB-130 |
| 主动钻杆Main drill (mm) | 108×108×10500 |
| 送水器负荷Feeding water device load (t) | 36 |
| 钻塔有效高度Rig working height (m) | 15.3(折叠式) |
| 钻塔额定负载 Rig rated load (t) | 50 |
| 钻机电动机组功率 Drilling machine motor power (kW) | 75 |
| 泥浆泵电动机组功率 Mud pump motor unit power (kW) | 90 |
| 空压机电动机组功率 Air compressor motor unit power (kW) | 7.5 |
| 液压泵站电动机组功率 Hydraulic power unit of electric power unit(kW) | 7.5 |
| 运输状态外形尺寸The dimension of during transport (m) | 14.6×3.2×4 |
| 工作状态外形尺寸The workof during transport (m) | 13.5×4.2×17.9 |
| 整体质量 Total weight (t) | 30 |

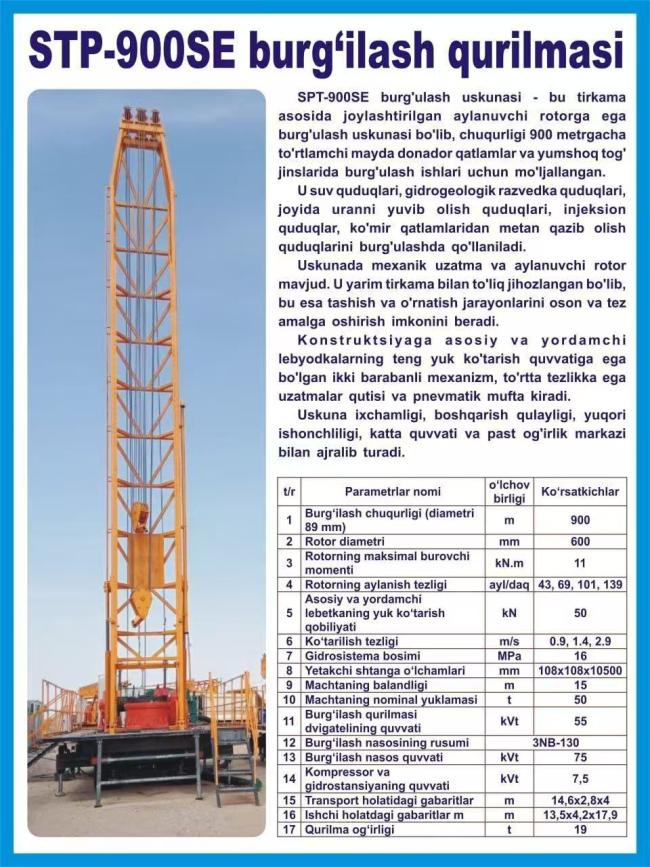

Burg'ulash uskunasi SPT900SE Trailerli
Burg'ulash uskunasi, Trailerli – SPT-900SE modeli
Chuqur burg'ulash loyihalari uchun yuqori samarali, mobil va ishonchli yechim
SPT-900SE trailerli burg'ulash uskunasi qiyin geologik va qurilish sharoitlarida ishlash uchun mo'ljallangan bo'lib, samaradorlik, chidamlilik va aniqlikni ta'minlaydi. Uskuna 900 metrgacha (φ89 burg'ulash trubkasi bilan) chuqurlikka ega bo'lib, suv quduqlarini burg'ulash, geotexnik tekshiruvlar va foydali qazilmalarni izlash kabi vazifalarda a'lo darajada ishlaydi.
Asosiy texnik xususiyatlari:
- Burg'ulash chuqurligi: 900 m gacha (φ89 trubka bilan)
- Aylanma stol diametri: φ600 mm
- Maksimal burilish momenti: 11 kN·m
- Aylanish tezligi: 43 / 69 / 101 / 139 ayl/min
- Asosiy ko'tarish qurilmasi yuk ko'tarish qobiliyati: 50 kN
- Yordamchi ko'tarish qurilmasi yuk ko'tarish qobiliyati: 50 kN
- Ko'tarish tezligi: 0.9 / 1.4 / 2.9 m/s
- Gidravlik tizim bosimi: 16 MPa
- Shlang nasos modeli: 3NB-130
- Burg'ulash sterjeni o'lchamlari: 108×108×10,500 mm
- Suv zaxirasi hajmi: 36 tonna
- Burg'ulash minorasi balandligi: 15 m (tashish uchun yig'iladigan konstruksiya)
- Maksimal ishlovchi yuk: 50 tonna
Dvigatel quvvatlari:
- Burg'ulash uskunasi: 75 kVt
- Shlang nasos: 90 kVt
- Kompresor: 7.5 kVt
- Gidravlik elektr stansiya: 7.5 kVt
- Tashish o'lchamlari (U×K×B): 14.6 × 2.8 × 4 m
- Ish paytidagi o'lchamlar (U×K×B): 13.5 × 4.2 × 17.9 m
- Umumiy og'irligi: 30 tonna
Mobil, kuchli va ko'p funksiyali yechim qidirayotgan qurilish kompaniyalari uchun SPT-900SE — tez ishga tushirish, kam xarajatli texnik xizmat ko'rsatish va maydondagi yuqori ish unumdorligini ta'minlaydigan ishonchli tanlovdir.
