China UCF204 Bearing units plastic bearing housing unit conveyor bearing ceramic bearing units for sale
China UCF204 Bearing units plastic bearing housing unit conveyor bearing ceramic bearing units for sale
China UCF204 Bearing units plastic bearing housing unit conveyor bearing ceramic bearing units for sale
China UCF204 Bearing units plastic bearing housing unit conveyor bearing ceramic bearing units for sale

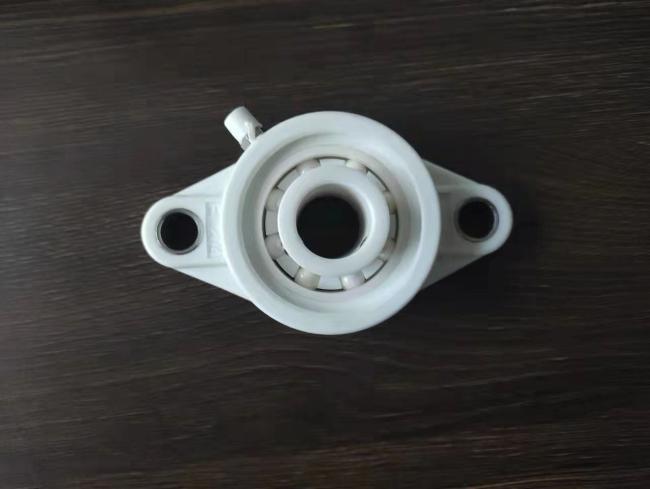

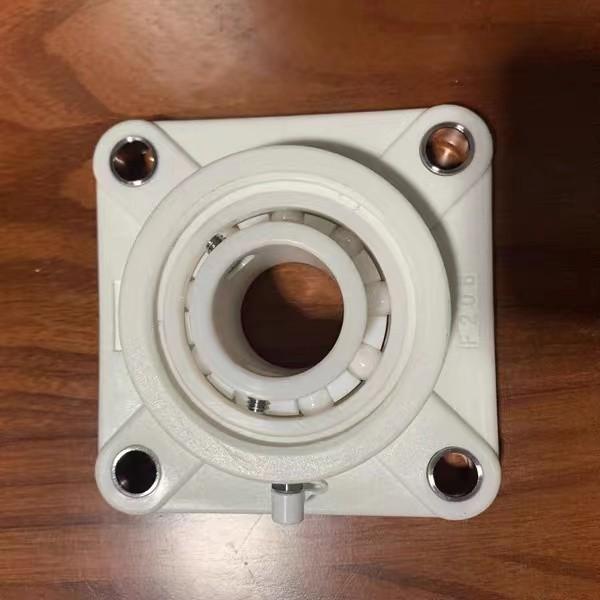

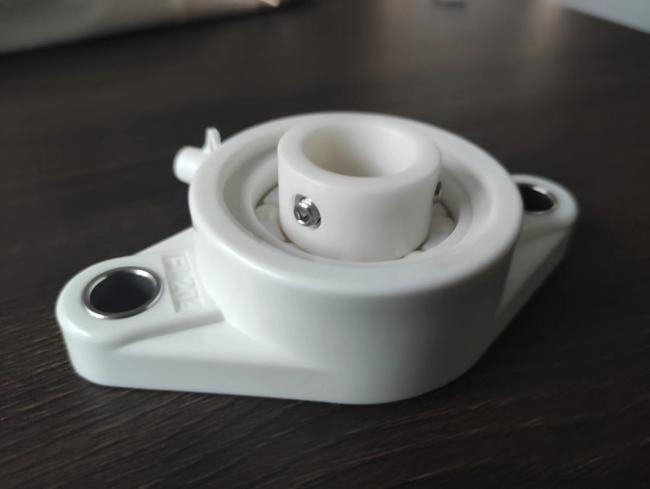

UCF204 Bearing units plastic bearing housing unit conveyor bearing ceramic bearing units

Price Negotiable
Price: 0-10usd
MOQ: 50pcs
Delivery Time: 5-30days
Brand: Zhiyue
Product Description
UCF201 Bearing units plastic bearing housing unit conveyor bearing ceramic bearing units

Materials: POM

Color:white or black
TYPE d Boundary dimention (mm) 　 weight
　 in mm a h e b S1 S2 g w Bi n kg
UCF201 1/2 12 127 33.3 95 38 11 14 14.2 65 31 12.7 0.6
UCF202 9/16 5/8 15 127 33.3 95 38 11 14 14.2 65 31 12.7 0.6
UCF203 11/16 17 127 33.3 95 38 11 14 14.2 65 31 12.7 0.6
UCF204 3/4 20 127 33.3 95 38 11 14 14.2 65.5 31 12.7 0.6
UCF205 13/16 7/8 15/16 1 25 141 36.5 105 38 11 14 14.5 71 34 14.3 0.8
UCF206 1-1/16 1-1/8 1-3/16 1-1/4 30 163 42.9 119 46 14 18 17.8 84 38.1 15.9 1.12
UCF207 1-1/4 1-5/6 1-3/8 1-7/16 35 168 47.6 127 48 14 18 18 94.5 42.9 17.5 1.46
UCF208 1-1/2 1-9/16 40 184 49.2 137 54 14 18 19.5 99 49.2 19 1.84
UCF209 1-5/8 1-11/16 1-3/4 45 192 54 146 54 17 20 23 106 49.2 19 2.15
UCF210 1-13/16 1-7/8 1-15/16 2 50 206 57.2 159 60 17 20 23 114 51.6 19 2.42
UCF211 2 2-1/16 2-1/8 2-3/16 55 219 63.5 171 　 17 20 23 125 55.6 22.2 3.31
UCF212 2-1/4 2-5/1 2-3/8 2-7/16 60 241 69.8 184 　 17 20 26 136 65.1 25.4 　
