China UCF204 plastic bearing unit Pillow block bearing unit Plastic housing bearing units white/black for sale
China UCF204 plastic bearing unit Pillow block bearing unit Plastic housing bearing units white/black for sale
China UCF204 plastic bearing unit Pillow block bearing unit Plastic housing bearing units white/black for sale
China UCF204 plastic bearing unit Pillow block bearing unit Plastic housing bearing units white/black for sale

UCF204 plastic bearing unit Pillow block bearing unit Plastic housing bearing units white/black

Price Negotiable
Price: 0-10usd
MOQ: 50pcs
Delivery Time: 5-30days
Brand: Zhiyue
Product Description

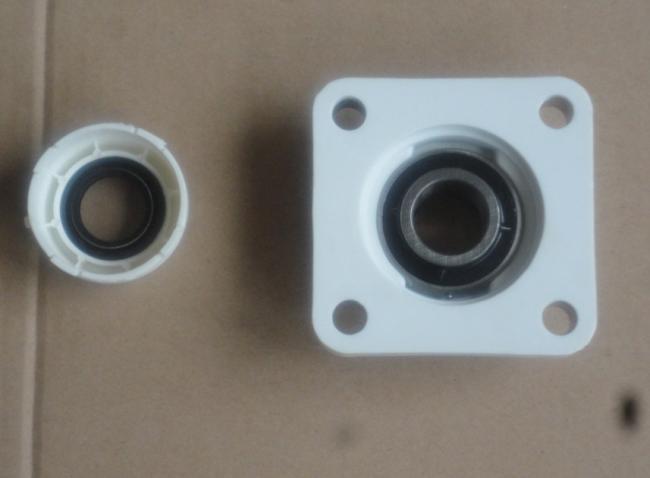

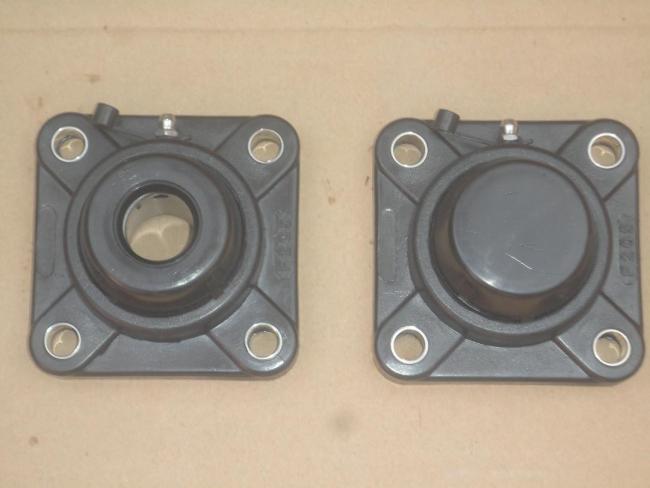

UCF 204 plastic bearing unit Pillow block bearing units Plastic housing bearing units white/black

Materials: POM

Color:white or black
  Bore Dia   　
TYPE d Boundary dimention (mm) 　 weight
　 in mm a h e b S1 S2 g w Bi n kg
UCF201 1/2 12 127 33.3 95 38 11 14 14.2 65 31 12.7 0.6
UCF202 9/16 5/8 15 127 33.3 95 38 11 14 14.2 65 31 12.7 0.6
UCF203 11/16 17 127 33.3 95 38 11 14 14.2 65 31 12.7 0.6
UCF204 3/4 20 127 33.3 95 38 11 14 14.2 65.5 31 12.7 0.6
UCF205 13/16 7/8 15/16 1 25 141 36.5 105 38 11 14 14.5 71 34 14.3 0.8
UCF206 1-1/16 1-1/8 1-3/16 1-1/4 30 163 42.9 119 46 14 18 17.8 84 38.1 15.9 1.12
UCF207 1-1/4 1-5/6 1-3/8 1-7/16 35 168 47.6 127 48 14 18 18 94.5 42.9 17.5 1.46
UCF208 1-1/2 1-9/16 40 184 49.2 137 54 14 18 19.5 99 49.2 19 1.84
UCF209 1-5/8 1-11/16 1-3/4 45 192 54 146 54 17 20 23 106 49.2 19 2.15
UCF210 1-13/16 1-7/8 1-15/16 2 50 206 57.2 159 60 17 20 23 114 51.6 19 2.42
UCF211 2 2-1/16 2-1/8 2-3/16 55 219 63.5 171 　 17 20 23 125 55.6 22.2 3.31
UCF212 2-1/4 2-5/1 2-3/8 2-7/16 60 241 69.8 184 　 17 20 26 136 65.1 25.4 　
