Four point contact ball slewing bearing (with outer flange and internal gear type)

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 35 days

Product Description

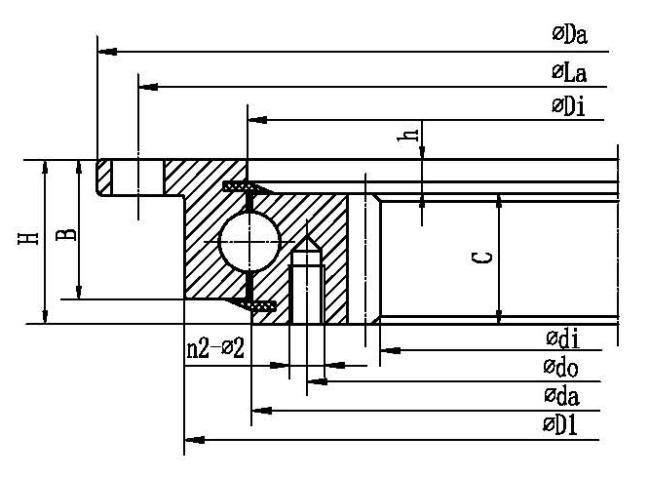

INA Model	Rothe Erde Model	TG Model	Boundary dimensions (mm)				Bolt hole diameter (mm)						Structure dimensions (mm)								Gear Parameters (mm)				Basic load ratinge Coa (KN)	Weight (KG)
INA Model	Rothe Erde Model	TG Model	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	Basic load ratinge Coa (KN)	Weight (KG)
			340		216	39	324	252	20	20	M6	M6	310	238	30	5	34	34	279	277	4	56	224		300	10
VLI200414N ZT			518		325	56	490	375	8	12	φ18	M12	458.5	350	40	11.5	44.5	47.5	415.5	412.5	5	67	335		600	28.5
VLI 20 0414N ZT RL2			516		325	56	490	375	8	12	φ18	M12	456	350	40	11.5	44.5	47.5	415.5	412.5	5	67	335		300	36.3
VLI200414N			518		325	56	490	375	8	12	18	M12		350	40	8.5	44.5	47.5	415.5	412.5	5	67	335		295	27.5
	232.20.0400.013		518		326.5	56	490	375	8	12	18	M12			45.5	10.5	45.5	45.5	415.5	412.5	5	67	335		250	27.1
	232.20.0400.503		518		326.5	56	490	375	16	12	18	M12			45.5	10.5	45.5	45.5	415.5	412.5	5	67	335		250	26.9
	232.21.0475.013		517		326.5	56	490	375	8	12	18	M12			45.5	10.5	45.5	45.5	415.5	411	5	67	335		250	27.1
		I.505.20.00.C	518		326.5	56	490	375	8	12	φ18	M12	453		46	10	46	46	415.5	412.5	5	67	335		500	35.4
VLI200544N ZT			648		444	56	620	505	10	16	φ18	M12	588.5		44.5	11.5	44.5	47.5	545.5	542.5	6	76	456		790	40.6
VLI200544N			648		444	56	620	505	10	16	18	M12			44.5	11.5	44.5	47.5	545.5	542.5	6	76	456		385	38
	232.20.0500.013		648		445.2	56	620	505	10	16	18	M12			45.5	10.5	45.5	45.5	545.5	542.5	6	76	456		330	36.9
	232.20.0500.503		648		445.2	56	620	505	20	16	18	M12			45.5	10.5	45.5	45.5	545.5	542.5	6	76	456		330	36.7
	232.21.0575.013		647		445.2	56	620	505	10	16	18	M12			45.5	10.5	45.5	45.5	545.5	541	6	76	456		330	36.9
		I.650.20.00.C	648		445.2	56	620	505	10	16	φ18	M12	583		46	10	46	46	545.5	542.5	6	76	456		700	40.2
VLI200644N ZT			748		546	56	720	605	12	18	φ18	M12	688.5		44.5	11.5	44.5	47.5	645.5	642.5	6	93	558		900	47.4
VLI200644N			748		546	56	720	605	12	18	18	M12			44.5	8.5	44.5	47.5	645.5	642.5	6	93	558		455	45
	232.20.0600.013		748		547.2	56	720	605	12	18	18	M12			45.5	10.5	45.5	45.5	645.5	642.5	6	93	558		390	43.7
	232.20.0600.503		748		547.2	56	720	605	24	18	18	M12			45.5	10.5	45.5	45.5	645.5	642.5	6	93	558		390	43.4
.	232.21.0675.013		747		547.2	56	720	605	12	18	18	M12			45.5	10.5	45.5	45.5	645.5	641	6	93	558		390	43.7
		I.750.20.00.C	748		547.2	56	720	605	12	18	φ18	M12	683		46	10	46	46	645.5	642.5	6	93	558		780	53.3
VLI200744N ZT			848		648	56	820	705	12	20	φ18	M12	788.5		44.5	11.5	44.5	47.5	745.5	742.5	6	110	660		530	54
VLI200744N			848		648	56	820	705	12	20	18	M12			44.5	8.5	44.5	47.5	745.5	742.5	6	110	660		530	51.5
	232.20.0700.013		848		649.2	56	820	705	12	20	18	M12			45.5	10.5	45.5	45.5	745.5	742.5	6	110	660		450	51.1
	232.20.0700.503		848		649.2	56	820	705	24	20	18	M12			45.5	10.5	45.5	45.5	745.5	742.5	6	110	660		450	50.8
	232.21.0775.013		847		649.2	56	820	705	12	20	18	M12			45.5	10.5	45.5	45.5	745.5	741	6	110	660		450	51.1
		I.850.20.00.C	848		649.2	56	820	705	12	20	φ18	M12	783		46	10	46	46	745.5	742.5	6	110	660		910	63.1
VLI200844N ZT			948		736	56	920	805	14	20	φ18	M12	888.5		44.5	11.5	44.5	47.5	845.5	842.5	8	94	752		1200	65.2
VLI200844N			948		736	56	920	805	14	20	18	M12			44.5	8.5	44.5	47.5	845.5	842.5	8	94	752		600	61.5
	232.20.0800.013		948		737.6	56	920	805	14	20	18	M12			45.5	10.5	45.5	45.5	845.5	842.5	8	94	752		510	61.6
	232.20.0800.503		948		737.6	56	920	805	28	20	18	M12			45.5	10.5	45.5	45.5	845.5	842.5	8	94	752		510	61.3
