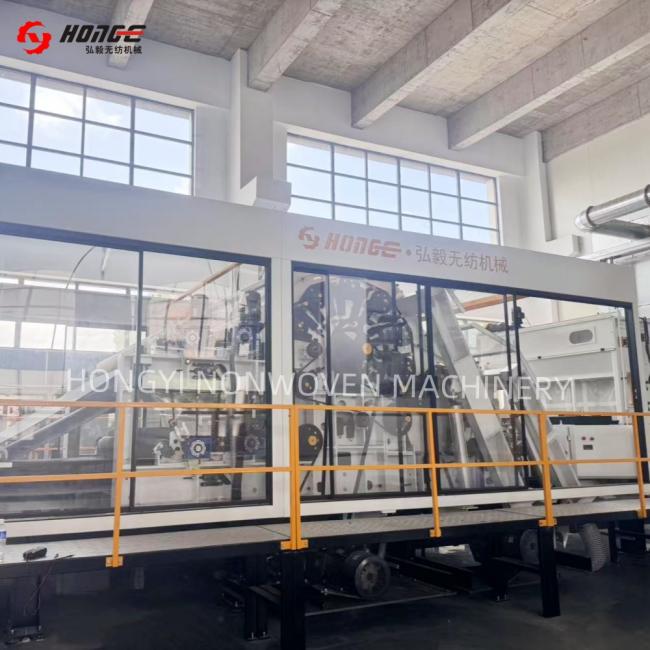

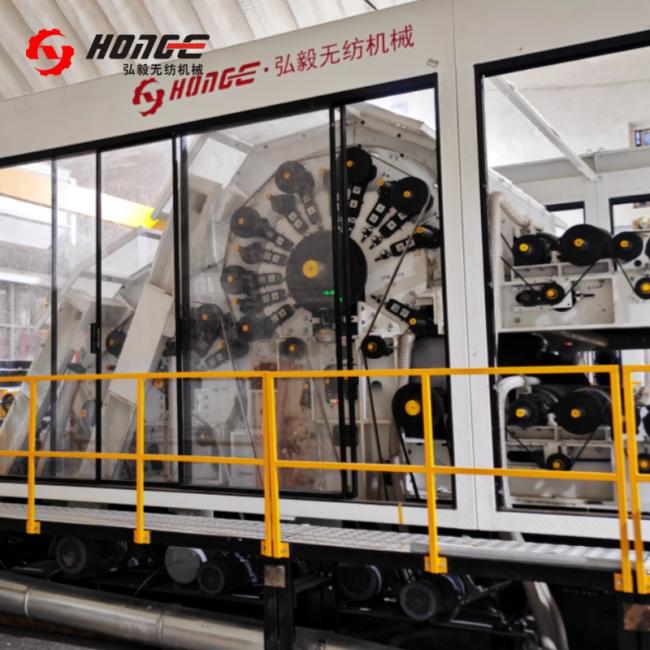

Double Cylinder Double Doffer Nonwoven Carding Machine 500kg/H
Product name: High Capacity Nonwoven Polyester Carding Machine with Double Cylinder Double Doffer
Function: The machine is used for fully carding the fiber batt to fiber webs for the next procedure.
Main specifications:
Working width: 1550mm 1850mm 2000mm 2300mm 2500mm 3000mm 3200mm
Diameter of cylinder: 1230mm, 850mm
Diameter of doffer: 550mm
Suitable fiber: 1.5D-4.5D*38mm~51mm
Weight of single web: 8-40g/m2×2
Capacity: ≦1000kg/h
Structures:
a. The card is of modular design allowing for ease of transport and installation.
b. It is mounted normally on an 800mm width platform with CE/UL approved walkways allowing for ease of observation and access as required in a safe manner.
c. There is a metal detect system fitted whereby the feed rollers are designed to detect metal and will automatically go into reverse for several seconds to reverse any metal away from the card licker-in. Main cylinder equipped with emergency brake system.
d. Edge-suction system is equipped and the dust particles will be transferred to special dust cage.
Trade information:
| Trade terms | FOB SHANGHAI, C&F |
| Lead time | 90 days. |
| Payment term | 30% TT advance, 70% will be paid off before delivery. |
| Warranty |
The Seller gives a mechanical warranty for all machine parts except from the wearing parts and the problem caused by wrong operation and other man-made factors; the respective warranty period shall be twelve (12) months after mechanical and electrical commissioning. |
| Installation |
The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign translator, workers, electrical cable (from machines to control panel and from power to control panel) and tools for installation to cooperate with the work. |
