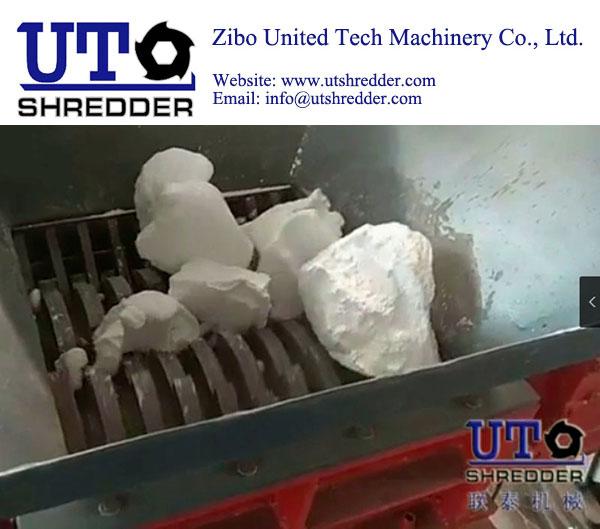

Customized Solid Hyaluronic Acid Crusher, Hyaluronic Acid Shred Machine, Chemical Materials Grinder, 2 Shaft Shredder
Hyaluronic Acid shredder is one set of customized double shaft shredder from UT machinery. The D Series Shredders from zibo United Tech Machinery Co.,Ltd. are designed to operate at slower speeds, utilising high torque and the tearing, crushing & shearing actions between counter rotating, opposing blades. This results in minimial power consumption and reduced noise when compared with other types of shredders, whilst still achieving high throughput rates and low maintenance costs.
These machines are particularly suited to the size reduction of bulky materials. Unlike higher speed shredders , UT machinery’s D Series machines can be used for reducing tougher materials such as metals and contaminated waste streams.
Machines are supplied complete with electrical control panel, and are guarded to prevent access to moving parts therefore ensuring safe operation.

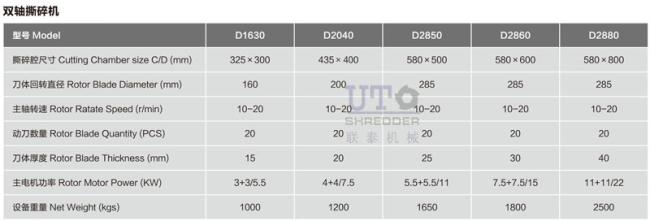

| Model | D2012 | D1630 | D2040 | D2850 | D2860 | D2880 | D2890 | D3280 |
| Cutting Chamber size C/D (mm) | 435×130 | 325×300 | 435×400 | 580×500 | 580×600 | 580×800 | 580×900 | 650×800 |
| Rotor Blade Diameter (mm) | 200 | 160 | 200 | 285 | 285 | 285 | 285 | 320 |
| Rotor Ratate Speed (r/min) | 5-10 | 10-20 | 10-20 | 10-20 | 10-21 | 10-20 | 10-20 | 10-15 |
| Rotor Blade Quantity (PCS) | 3 | 20 | 20 | 20 | 20 | 26 | 30 | 20 |
| Rotor Blade Thickness (mm) | 40 | 15 | 20 | 25 | 30 | 30 | 30 | 40 |
| Rotor Motor Power (KW) | 1.5+1.5/3 | 3+3/5.5 | 4+4/7.5 | 5.5+5.5/11 | 7.5+7.5/15 | 11+11/22 | 15+15/30 | 15+15/30 |
| Net Weight (kgs) | 800 | 1000 | 1200 | 1650 | 1800 | 2500 | 2500 | 4000 |

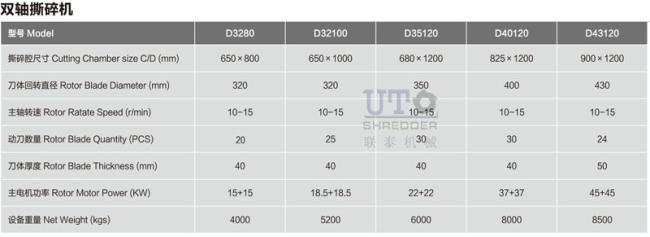

| Model | D32100 | D35120 | D35150 | D40100 | D40120 | D40150 | D40180 | D43120 |
| Cutting Chamber size C/D (mm) | 650×1000 | 680×1200 | 680×1500 | 825×1000 | 825×1200 | 825×1500 | 825×1800 | 900×1200 |
| Rotor Blade Diameter (mm) | 320 | 350 | 350 | 400 | 400 | 400 | 400 | 430 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 25 | 30 | 38 | 20 | 24 | 30 | 36 | 24 |
| Rotor Blade Thickness (mm) | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 |
| Rotor Motor Power (KW) | 18.5+18.5/37 | 22+22 | 30+30 | 30+30 | 37+37 | 45+45 | 55+55 | 45+45 |
| Net Weight (kgs) | 5200 | 6000 | 7000 | 8000 | 8000 | 10000 | 12000 | 8500 |
| Model | D43150 | D43180 | D52120 | D52150 | D52180 | D62140 | D62180 | D62210 |
| Cutting Chamber size C/D (mm) | 900×1500 | 900×1800 | 1100×1200 | 1100×1500 | 1100×1800 | 1300×1400 | 1300×1820 | 1300×2100 |
| Rotor Blade Diameter (mm) | 430 | 430 | 520 | 520 | 520 | 620 | 620 | 620 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 30 | 36 | 20 | 30 | 30 | 20 | 26 | 30 |
| Rotor Blade Thickness (mm) | 50 | 50 | 60 | 50 | 60 | 70 | 70 | 70 |
| Rotor Motor Power (KW) | 55+55 | 75+75 | 75+75 | 75+75 | 75+75 | 90+90 | 90+90 | 90+90 |
| Net Weight (kgs) | 11000 | 13500 | 12000 | 14000 | 16000 | 15000 | 20000 | 24000 |
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the factory.
How about the shipping and package?
1. we arrange shipment usually according to your special requirements.
2. usually plywood packageif in LCL loading.
How to get a suitable machine?
1. what is your raw material?
2. the dimension of the input material and outpout material
3. the capacity, and power condition.
Tell me those data, we will recommend the suitable Shredder model and specification for you.
Please feel free to contact me any time with any questions.
We are waiting for you!
Our service:
(1) Your inquiry related to our products or prices will be replied in 12hours.
(2) Our engineer will make machine placement chart according to client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.
