Bulky Waste Furniture Crushing & Sorting processing system; Solid Waste Shredder; 2 shaft shred,Municipal Waste Shredder
Bulky Waste Furniture Crushing & Sorting processing system
With the impvorment of the living standards, more and more discharged garbages. Bulky waste furniture mainly is sofa, mattress, wood table, desk, chair, dorr, office furniture, waste quilt, discharged bicycle, decoration materials, etc. These kinds of garbage is large volum light weight, high transportation ocst, inconvenient for transportion and handling, hamper public transport, pollute the environment seriously, so has brought great trouble to the urban construction and manament.
These bulky waste furniture would reduce the volumn, increase the density, save the transportation charge. And the bulky waste furniture is composition is wood, metal, sponge, foam, fiber, textiles, etc which with high recycling value. So it is very important to crush and recycling use them.
United Tech take the “ crush, reduce, sort, transport, recycling” as the principle, and prodcue the processing system according to the exact condition and the final purpose. United Tech Machinery, one professional crushing expert to meet your requirements to the CUSTOMIZED SHREDDER.

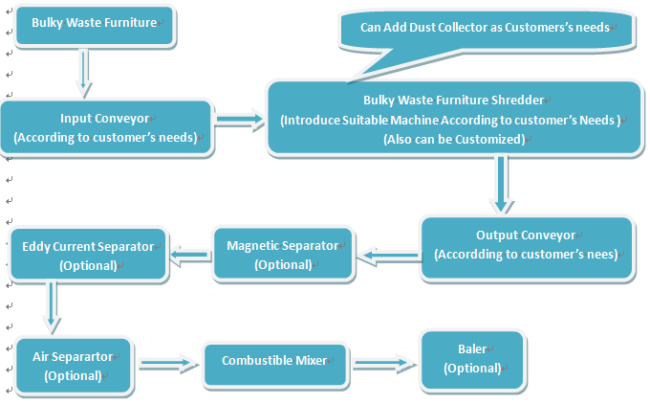

Bulky waste furniture processing diagram:
Description:
This processing diagram is used for the bulky waste furniture crushing and sorting. It can be adjusted according to customers’ actual condition.
The bulky waste furniture is shredded by the coarse shredder, the ouput size is less than 300mm..After shredding, sort out the metals like iron, steel, copper, alumina, etc, wood, textiles, sponge (foam, rubber), etc.
Features:
The bulky waste furniture system is totally enclosed design, including crushing, dedust, sorting, etc.
The core shredder with the welding alloy steel, strong wear resistance, decrease the maintaince cost.
The blade is detachable design, spiral arragement, easier to catch the materials to crush.
Brand plate speed reducer, low speed, large torque.
| Model | D40120 | D40150 | D40180 | D43150 | D43180 | D52120 | D52150 | D52180 | D62140 | D62180 | D62210 |
| Cutting Chamber size C/D (mm) | 825×1200 | 825×1500 | 825×1800 | 900×1500 | 900×1800 | 1100×1200 | 1100×1500 | 1100×1800 | 1300×1400 | 1300×1820 | 1300×2100 |
| Rotor Blade Diameter (mm) | 400 | 400 | 400 | 430 | 430 | 520 | 520 | 520 | 620 | 620 | 620 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 30 | 30 | 45 | 30 | 36 | 20 | 30 | 30 | 20 | 26 | 30 |
| Rotor Blade Thickness (mm) | 40 | 50 | 40 | 50 | 50 | 60 | 50 | 60 | 70 | 70 | 70 |
| Rotor Motor Power (KW) | 37+37 | 45+45 | 55+55 | 55+55 | 75+75 | 75+75 | 75+75 | 75+75 | 90+90 | 90+90 | 90+90 |
| Net Weight (kgs) | 8000 | 10000 | 12000 | 11000 | 13500 | 12000 | 14000 | 16000 | 15000 | 20000 | 24000 |
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the factory.
How about the shipping and package?
1. we arrange shipment usually according to your special requirements.
2. usually plywood packageif in LCL loading.
How to get a suitable machine?
1. what is your raw material?
2. the dimension of the input material and outpout material
3. the capacity, and power condition.
Tell me those data, we will recommend the suitable Shredder model and specification for you.
Please feel free to contact me any time with any questions.
We are waiting for you!
Our service:
(1) Your inquiry related to our products or prices will be replied in 12hours.
(2) Our engineer will make machine placement chart according to client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.
