Municipal Solid Waste Crushing & Sorting & RDF system

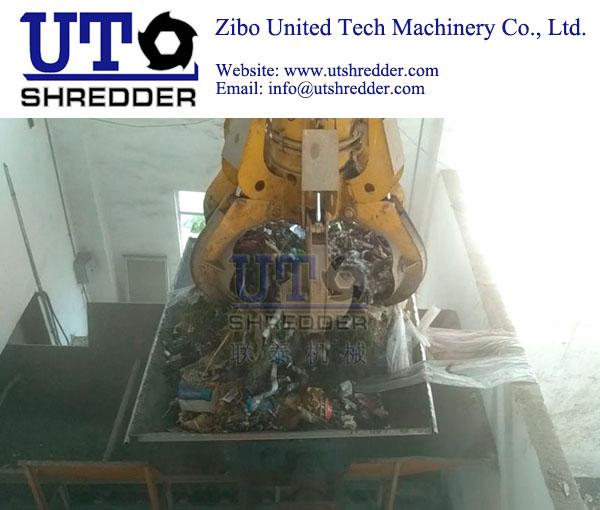

Municipal solid waste including difference complex compositition, the renewable recycling fraction is different as well. Ths United Tech shredder solved many problems from the customers: large crushing efficiency output ( the capacity of United Tech coarse shredder is 30-100mts/hour), The shredder is adjustable to the MSW complex materials, convolved materials, the fine crush to less than 30-80mm. Use the United Tech shredder, after crushed, it would be easier to sorting the paper, plastic, iron, alumina, ect valuable waste materials, the shreded residual combusible materials is made to RDF.
United Tech take the “ crush, reduce, sort, extrusion, recycling” as the principle, and prodcue the processing system according to the exact condition and the final purpose. United Tech Machinery, one professional crushing expert to meet your requirements to the CUSTOMIZED SHREDDER.
The consiture of the municipal solid wste:
Organics, plastic, metal, textile, wood, paper, stone & sand, glass & ceramic, E-waste, tec.
Municipal solid waste processing diagram:
Description:
This processing diagram is used for the municipal solid waste through crush, sort, to RDF. It is adjustable according to customers’ actual condition. .

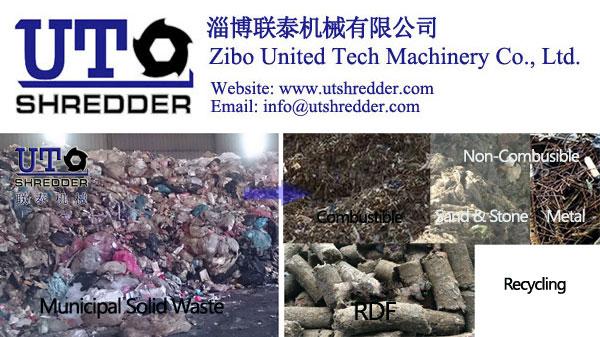

The final material is less than30- 80mm to be made of RDF (refuse dervied fuel). And sorting the iron, cooper, alumina, etc metals (recyclables), glass, ceramic, stone and sand non-combusible materials (landfill).
| Model | D3280 | D32100 | D35120 | D35150 |
| Cutting Chamber size C/D (mm) | 650×800 | 650×1000 | 680×1200 | 680×1500 |
| Rotor Blade Diameter (mm) | 320 | 320 | 350 | 350 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 20 | 25 | 30 | 38 |
| Rotor Blade Thickness (mm) | 40 | 40 | 40 | 40 |
| Rotor Motor Power (KW) | 15+15 | 18.5+18.5 | 22+22 | 22+22 |
| Net Weight (kgs) | 4000 | 5200 | 6000 | 6500 |
| Model | D40120 | D40150 | D40180 | D43150 | D43180 | D52120 | D52150 | D52180 | D62140 | D62180 | D62210 |
| Cutting Chamber size C/D (mm) | 825×1200 | 825×1500 | 825×1800 | 900×1500 | 900×1800 | 1100×1200 | 1100×1500 | 1100×1800 | 1300×1400 | 1300×1820 | 1300×2100 |
| Rotor Blade Diameter (mm) | 400 | 400 | 400 | 430 | 430 | 520 | 520 | 520 | 620 | 620 | 620 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 30 | 30 | 45 | 30 | 36 | 20 | 30 | 30 | 20 | 26 | 30 |
| Rotor Blade Thickness (mm) | 40 | 50 | 40 | 50 | 50 | 60 | 50 | 60 | 70 | 70 | 70 |
| Rotor Motor Power (KW) | 37+37 | 45+45 | 55+55 | 55+55 | 75+75 | 75+75 | 75+75 | 75+75 | 90+90 | 90+90 | 90+90 |
| Net Weight (kgs) | 8000 | 10000 | 12000 | 11000 | 13500 | 12000 | 14000 | 16000 | 15000 | 20000 | 24000 |
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the factory.
How about the shipping and package?
1. we arrange shipment usually according to your special requirements.
2. usually plywood packageif in LCL loading.
How to get a suitable machine?
1. what is your raw material?
2. the dimension of the input material and outpout material
3. the capacity, and power condition.
Tell me those data, we will recommend the suitable Shredder model and specification for you.
Please feel free to contact me any time with any questions.
We are waiting for you!
Our service:
(1) Your inquiry related to our products or prices will be replied in 12hours.
(2) Our engineer will make machine placement chart according to client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.
