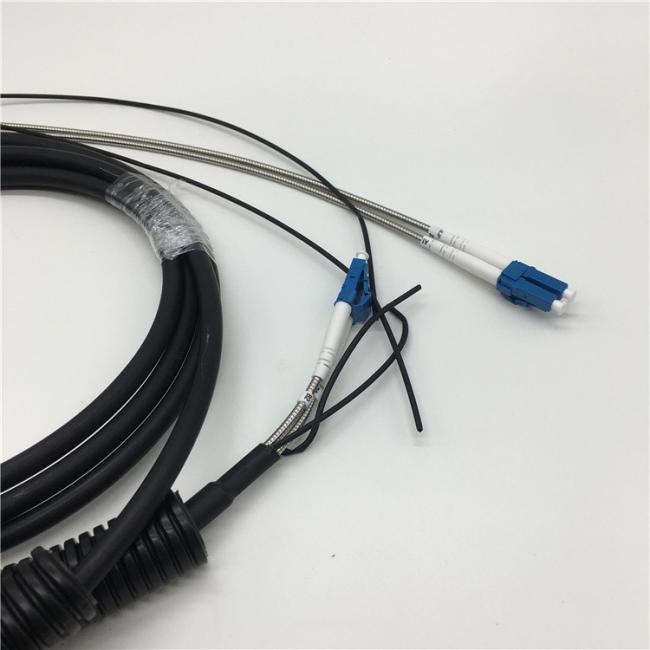

Outdoor Fiber Optic Cable DLC/PC BBU RRU CPRI 14130620 / F00OPCM04
Outdoor Fiber Optic Cable DLC/PC BBU RRU CPRI 14130620 / F00OPCM04
FTTA Outdoor Optical fiber patch cords one of our hotselling waterproof patch cords. With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner.ODVA fiber optic cable connector assemblies are rapidly becoming the standard connector interface. This patch cord uses standard size of Duplex LC Connectors,and the outer housing is metal protective PDLC/ODVA device. These patch cords meet with the functions of waterproof, dustproof and are widely used in FTTA, Base station, and the outdoor waterproof condition.
Features
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Application
FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
Performance Parameters
| Connector | End A | Compact RRH/BBU Cover Connector | |||
| End B | PDLC (duplex LC),or SC,FC,ST,MPO,MTP...... | ||||
| Fiber Core | 2,4…12 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
1. Factory Price
2. OEM
3. Fast delivery,low freight
4. Customize service
Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Usage
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on Outdoor Waterproof Fiber Optical DLC/PC Base station BBU RRU CPRI cable.
