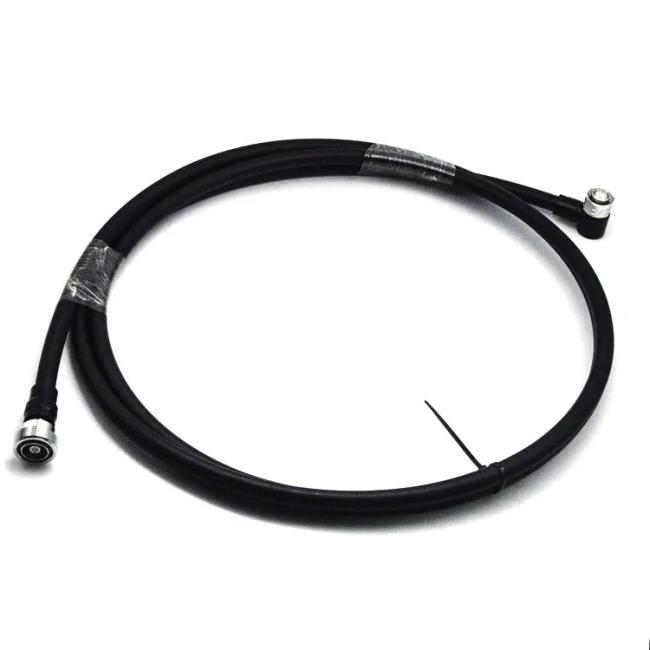

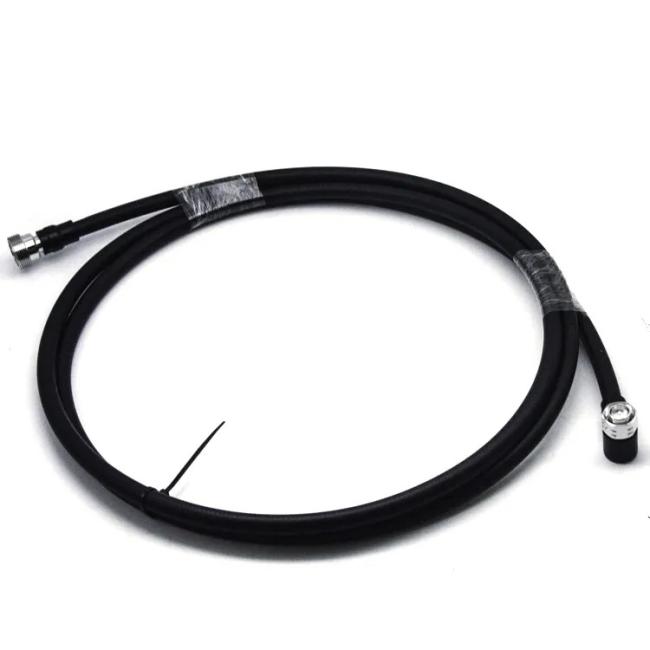

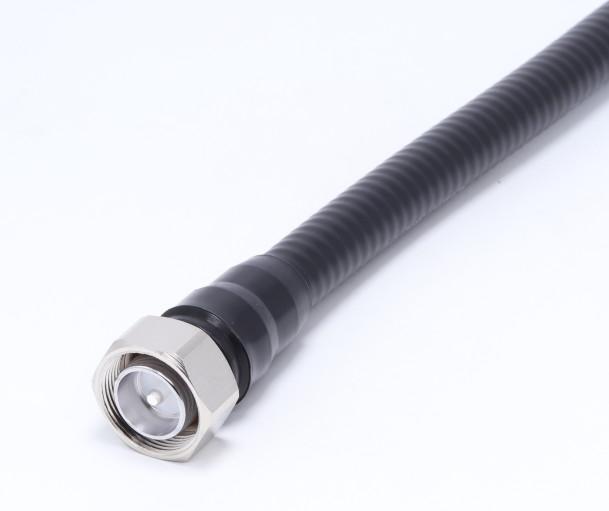

7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable
7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable
Interface
According to: IEC60169-4/IEC61169-54
Electrical
1.Characteristic Impedance:50ohm
2.Frequency Range:DC-3.6GHz
3.VSWR:≤1.25
4.PIM:≤-160dBc
5.Dielectric withstanding voltage:≥2500RMS,50Hz,at sea level
6.Dielectric Resistance:≥5000MΩ
7.Contact Resistance:Outer Contact≤0.2mΩ ;Center Contact≤0.4mΩ
Mechanical
1.Durability :Mating cycles ≥100
2.Material and plating:
Body Material: Brass Plating: Tri-alloy
Insulator Material: PTFE
Center Conductor Material:Brass /Phosphor Bronze Plating: Ag
Environmental
1.Temperature Range:-40℃~+85℃
2.RoHS Compliant: Pass
Q&A
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
AS customer requirements
Inner packing:Bubble
Outer packing:carton
Foam + Blister + Vacuumize +Carton
Any kind of packing can be mixed.
Delivery:7-15Days after payments
Look forward to your inquiry to 7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable.
