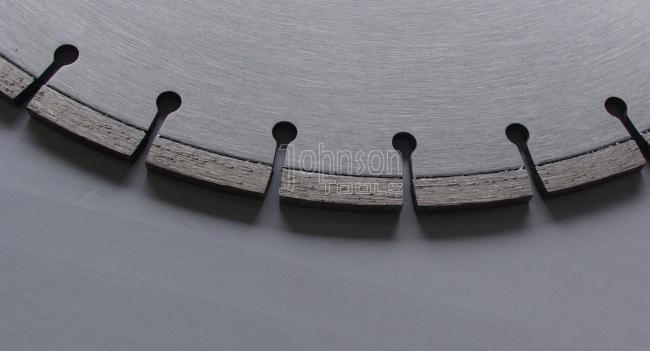

4"-24" Dry Cut Diamond cutting Blades , Concrete Saw Blade With Long Working Life
4"-24" Laser Welded Concrete Cutting Blade for Cured Concrete with Long Working Life
Diamond concrete saw blades specially designed for cutting hard non-metallic materials concrete such as concrete, cured concrete, concrete slabs and pipes, etc.
100% laser welding technology make sure good cutting, and long lifetime. Well exported to USA, Peru, Mexico, Sweden, Uk, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc.
Specification
Diameter: 105mm-600mm
Segment thickness:2.2-4.4mm
Segment height: 7mm, 10mm, 12mm, 15mm.
Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
| Inch |
Diameter |
Teeth length |
Teeth thickness |
Teeth height |
Teeth number |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
Segment type:
