Soff Cut Laser Welded 6 Inch Diamond Saw Blades For Green Concrete Cutting
Soff Cut Laser Welded 6 Inch Diamond Saw Blades For Green Concrete Cutting

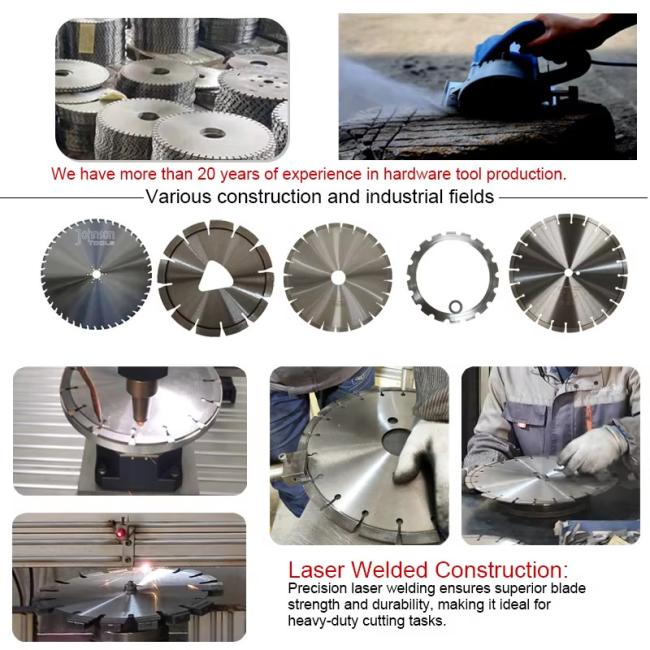

Soff-cut laser welded diamond saw blade for green concrete
For cutting ultra hard aggregate, hard aggregate, medium to hard aggregate materials.
Early entry diamond saw blade. Feature:
1. Fast cutting.
2. Long life.
3. Fine, more precise cutting.
Laser welding soff uct, no concrete chipping, no concrete spaling and now saw vibration.
Specification
1. Diameter: 6" (156mm)
2. Segment size: 2.4mm thickness x 10mm height.
3. Inner hole: speical triangular arbor.
4. Slot: Key slot or Narrow U slot.
| Inch |
Segment thickness (mm) |
Segment height (mm) |
Segment height |
| 6" | 2.4 | 10 | 10 |
| 10" | 2.6 | 10 | 17 |
| 12" | 3.2 | 10 | 21 |
| 13.5" | 3.2 | 10 | 24 |
| 14" | 3.2 | 10 | 24 |
Packing
1. 6": 100pcs packed in one carton, 10": 50pcs packed in one carton. 12", 13.5", 14": 10pcs packed in one carton.
2. Gross weight: Around 20kg per carton. Around 350-400kg in one pallet.
About us
1. We're a direct manufacturer and 100% export diamond tools to worldwide( American, Croatia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc)
2. Found in 2000 years.
3. Main product: laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4. Above 95% customers will place a formal order after testing the samples.
