C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
Price:
$12000
MOQ:
1set
Delivery Time:
7days
Brand:
zealchon
Product Description
Product Description
Specification
C077-B Soil Automatic Ring Shear Direct Shear Tester

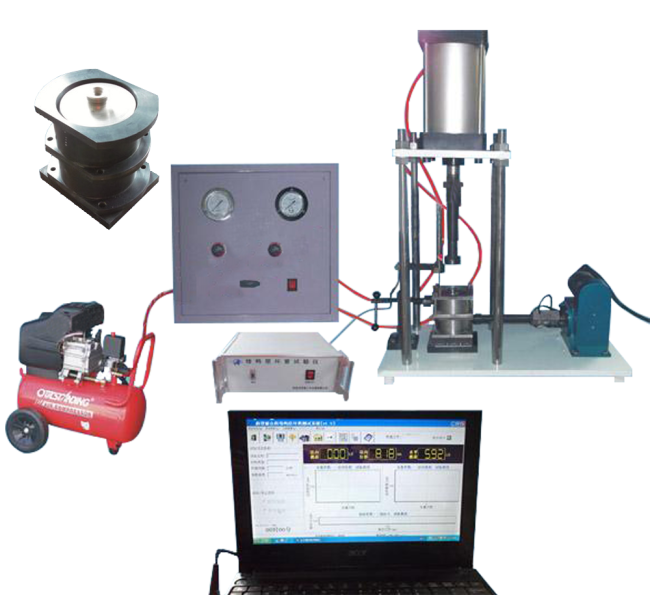

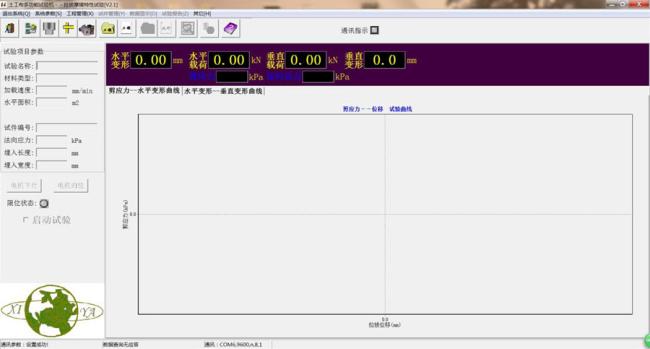

The equal-strain control type direct shear instrument is used to measure the shear strength of soil. Usually, a specimen is used to apply shear force to shear under different vertical pressures. The shear stress at failure is obtained, and the shear strength coefficient, internal friction angle and cohesion are determined according to Coulomb's law. The instrument consists of a direct shear tester host, a pressure control system, a direct shear acquisition controller, an air pump, and host computer software. The direct shear controller displays the vertical pressure, shear force and displacement, and the speed can be set. The software can run under the Windows operating system, which can realize Automatic extraction, storage, printing, exporting and other functions of data acquisition instrument. Technical Parameters 1. Vertical loading: 0～10KN accuracy 0.005% 2. Pressurization method: cylinder pressurization. The pressure is loaded step by step according to the sample area, and the pressure is constant. 3. Shear force: 0～5KN (±10N) 4. Specimen size: ￠61.8×20mm 5. Limit displacement travel: 30mm Accuracy: 0.01mm 6. Shearing speed: 0~30mm/min can be set arbitrarily
Related products
Company Profile
After-service
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.
2.What can you buy from us?
Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.
4. Why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
Language Spoken:English,Chinese,Spanish,Japanese
Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
