B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
Price:
$9000
MOQ:
1set
Delivery Time:
7days
Brand:
zealchon
Product Description
Product Description

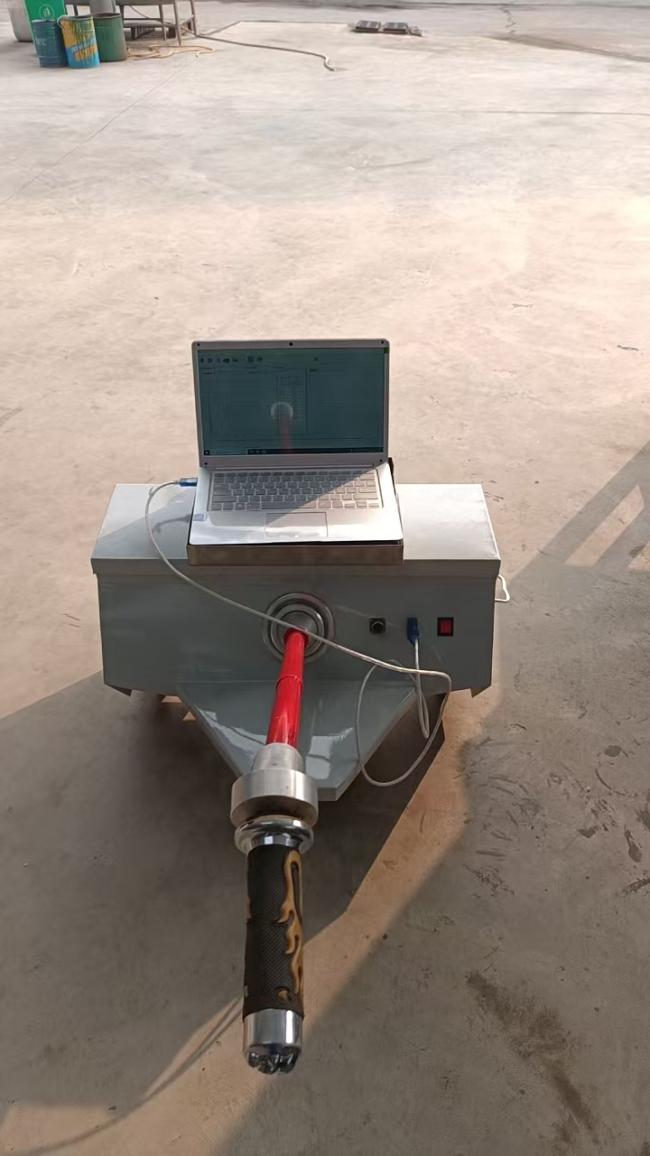

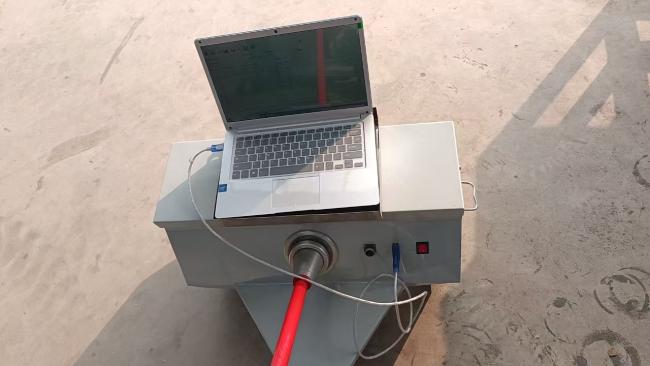

B002-B Road and Hand push type laser surface International Roughness Index (IRI) tester or Profilometer
The instrument is a new type of laser flatness gauge developed by xi'an zealchon Civil instrument graduate school on the basis of YLPY - F type and site construction requirements, convenient for construction units to use at any time.
It can test quality acceptance of the building, rebuilding, pavement engineering and no serious potholes and rutting disease, and the road surface roughness without water, snow, mud and normal traffic detection.
Precision can be up to 0.01 mm, to measure the surface smoothness of the asphalt, the reliability of generating high speed transmission measurement data into the computer processed by special software,it also can output calculation table and waveform figure .
Laser flat instrument host computer program is application software mating road flat instrument host supporting, the software can run on operating system, for data acquisition, storage, printing and data processing, calculation and generate reports and to facilitate further analysis.
Technical performance
It can test quality acceptance of the building, rebuilding, pavement engineering and no serious potholes and rutting disease, and the road surface roughness without water, snow, mud and normal traffic detection.
Precision can be up to 0.01 mm, to measure the surface smoothness of the asphalt, the reliability of generating high speed transmission measurement data into the computer processed by special software,it also can output calculation table and waveform figure .
Laser flat instrument host computer program is application software mating road flat instrument host supporting, the software can run on operating system, for data acquisition, storage, printing and data processing, calculation and generate reports and to facilitate further analysis.
Technical performance
1. The flatness of measurable indicators:
The international roughness index IRI
Flatness sigma (can be reduced turbulence value)
2. The output:
All kinds of index number mileage pile number out-of-tolerance left picture right picture can be set
All kinds of index curve and the original data
3. The general technical characteristics:
Detection speed: 8 km/h continuous measurable distance: > 50 km
Minimum sampling interval: 10 mm
Sensor precision: 0.1 mm
Operating temperature: 0 ℃ ~ 50 ℃
System power supply: DC 12 V
Between the bottom of the laser sensor and the clear distance pavement: 100 mm (testing)
Detection range: IRI: 0-100 m and other detection distance can be set
Test repeatability: deviation factor: CV < 3%
Parameter
Related products
Company Profile
After-service
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.
2.What can you buy from us?
Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.
4. Why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
Language Spoken:English,Chinese,Spanish,Japanese
Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
