X3 Electronic gold silver tester for jewelry shop

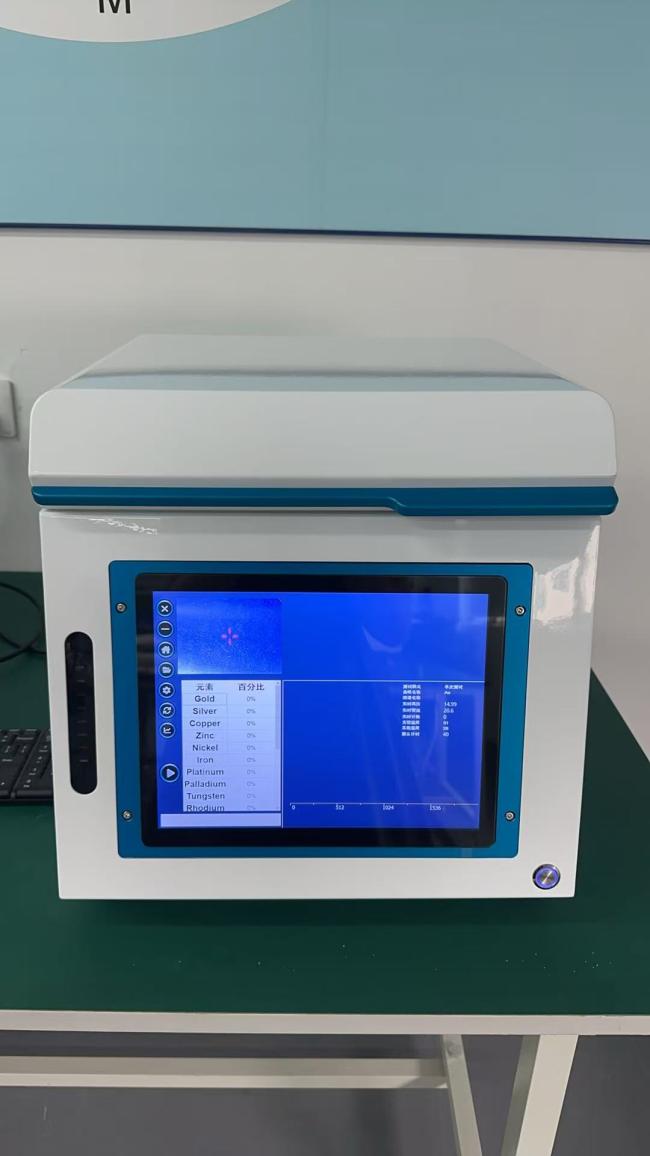

EXF 8200 XRF Platinum / Silver / Gold Tester Energy Dispersive X-ray Fluorescence
Detailed Product Description
| Detector: | Gas Proportional Detector | Precision: | ±10ppm~0.2% |
| Power: | Electronic | Principle: | Xrf |
| Product Name: | Gold Tester, Gold Analyzer, XRF Spectrometer | Testable Elements: | Au, Ag, Cu, Zn, Ni, Pt, Pd |
XRF Platinum / Silver / Gold Tester Energy Dispersive X-ray Fluorescence
Quick Detail:
Cfan New gold tester EXF 8200 is an upgrade model based on EXF 8000s. It is an ideal instrument for testing purity of precious metals, which integrated an industrial computer with industrial motherboard & multi-point hand touch.
It has new designed interface, which is easier to operate.
Description:
EXF 8200 is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.

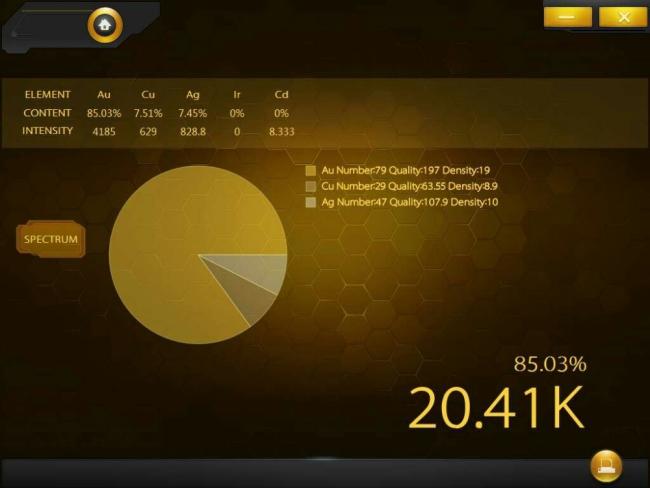

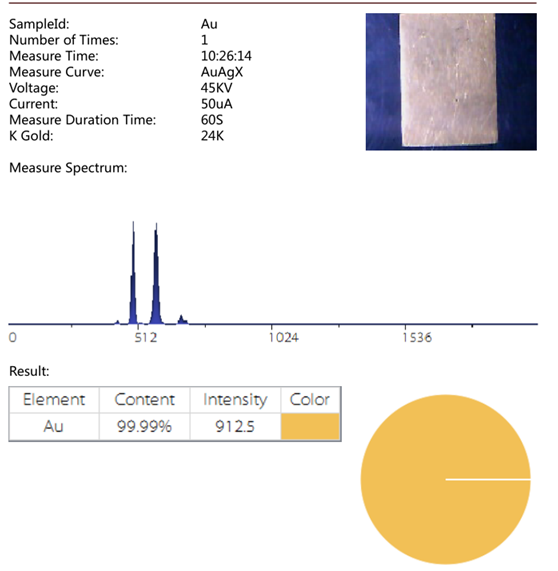

Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.
Applications:
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
Specifications:
| Working Principle: | Energy Dispersive X-ray Fluorescence |
| Size(mm): | 670*400*330 |
| Detection limit: | 100ppm Best substance effect |
| Precision: | ±10ppm~0.2% |
| Expanded Uncertainty: | ≤0.36% |
| Operating Environment: |
Temperature 0-28℃ Humidity ≤70% |
| High Voltage: | 0~50KV/0~1MA |
| Detector: | Gas Proportional Detector |
| Testable Elements: | Au, Ag, Cu, Zn, Ni, Pt, Pd, |
| Hare Ware: | Integrated PC with touch screen, Wireless LAN, USB interfaces, Video camera |
| Main Structure: | High-strength metal frame and industry plastic shell |
| N/G Weight(KG): | 33 / 45 |
Competitive Advantage:
1, Active radiation protection
2, High Voltage protection
3, X-ray Tube overheating protection
4, Extension wire and the auxiliary bracket
Gold Tester, XRF Spectrometer, XRF Analyzer, Precious Metals Tester
