High Quality Ground Improvement ZCQ 130kw vibroflot for stone column

Price Negotiable

Price: $15000

MOQ: 1set

Delivery Time: 7days

Brand: zealchon

Product Description

Product Description

ZCQ series variable frequency electric drive Vibroflot technical parameters

specification			ZCQ45	ZCQ55	ZCQ75	ZCQ100	ZCQ130
Vibro Motor	rated power	kw	45	55	75	100	130
	Rotating speed	r/mim	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)
	Current Rating	A	86	110	150	196	256
Vibration move machine body	Vibration frequency	HZ	24	24	24	24	24
	Moment	N.m	47	56	69	78	88
	Exciting force	kN	110-200	130-235	180-325	190-350	210-380
	Empty vibration amplitude	mm	≥18	≥16	≥15	≥15	≥16
	Empty LO current	A	≤35	≤40	≤50	≤60	≤70
The outer diameter of the body		mm	351	377	426	426	426
Body length		mm	≤2230	≤2465	≤2600	≤2750	≤2860
The total mass		kg	1000	1350	1800	1950	2200

Detailed Images

Packing and Shipping

Certifications

After-Sales Service

Contact Us

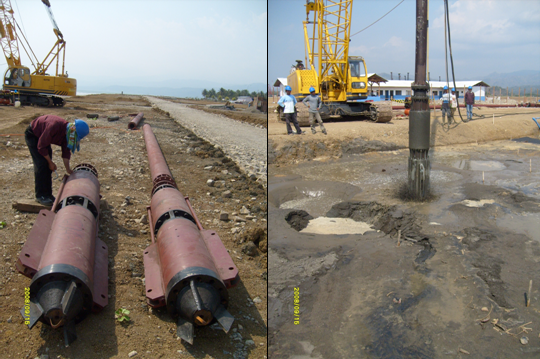

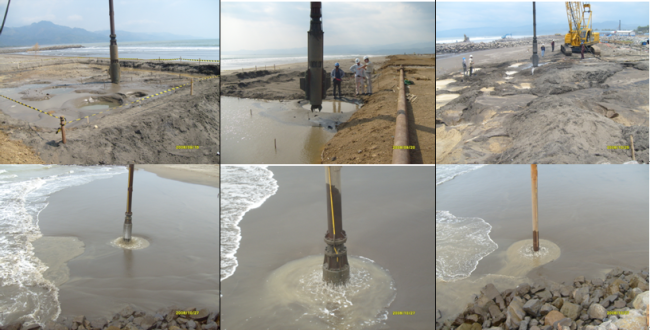

Previous project pictures

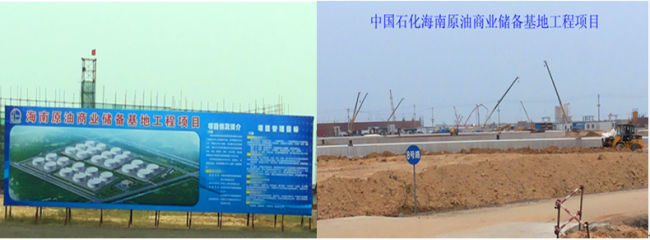

China Sinopec Hainan commercial crude oil reserve base project

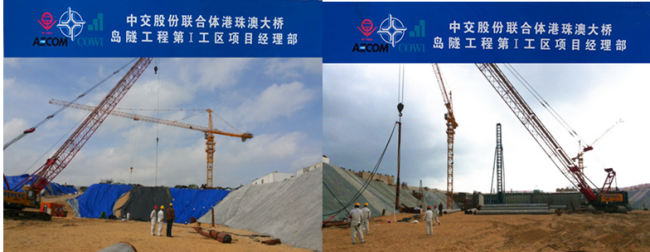

HZMB Island tunnel project

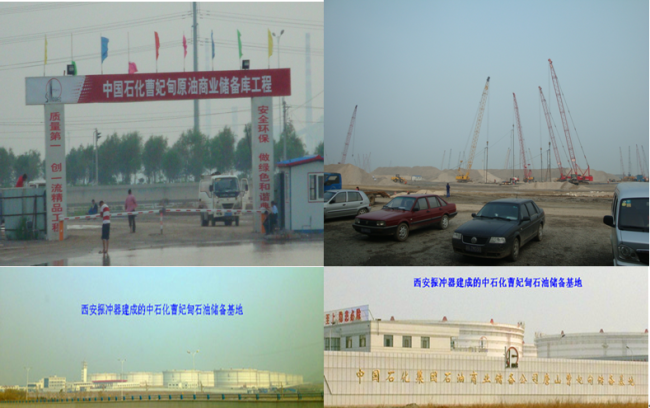

China Sinopec Caofeidian crude oil commercial reserve base library project

international market

Companies based in China, the world. Actively explore the international market, international sales companies are mainly concentrated in Africa, the Middle East and Asian countries, including: Benin, Sri Lanka, Indonesia, Malaysia, Algeria and other countries, and high customer credibility and visibility.

1, Chinese Embassy in Benin project equipment procurement negotiations
