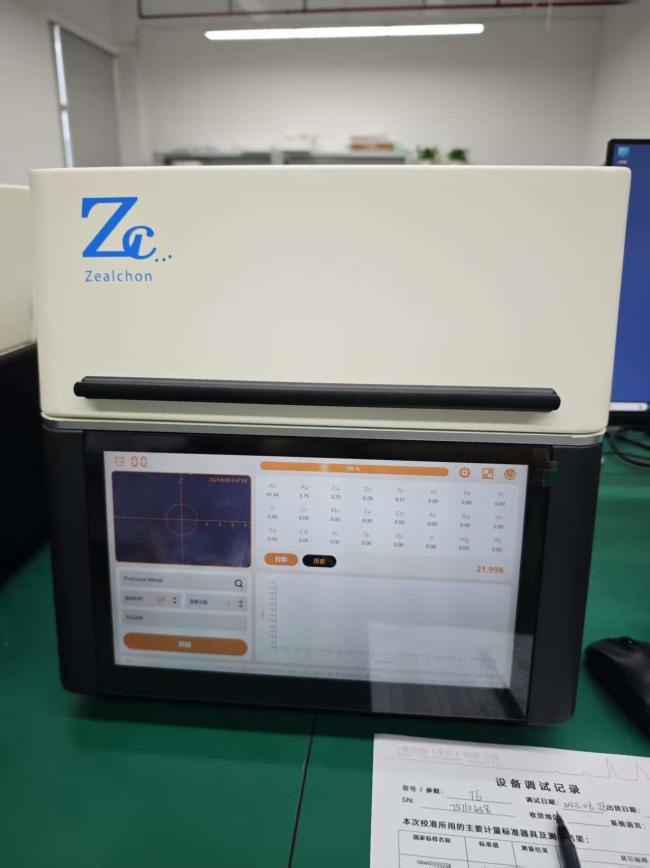

T6 XRF 0.03% precious metal gold purity tester for pawn shop
XRF 0.01% precious metal purity tester
Description:
T6 is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.

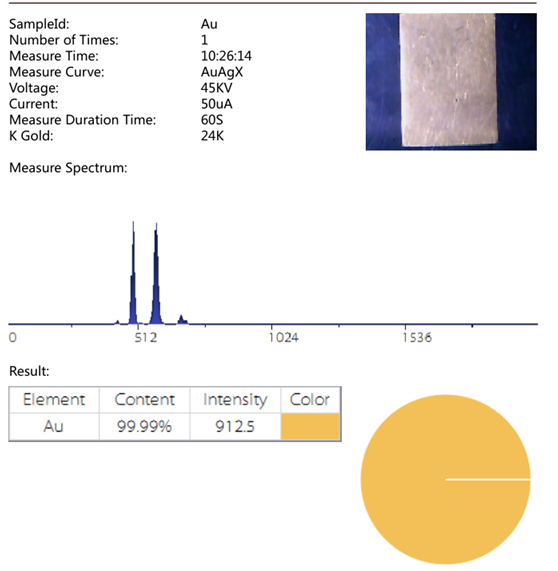

Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.
Schematic Diagram
Applications:
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
Specifications:
| Working Principle: | Energy Dispersive X-ray Fluorescence |
| Size(mm): | 670*400*330 |
| Detection limit: | 100ppm Best substance effect |
| Precision: | ±10ppm~0.2% |
| Expanded Uncertainty: | ≤0.36% |
| Operating Environment: |
Temperature 0-28℃ Humidity ≤70% |
| High Voltage: | 0~50KV/0~1MA |
| Detector: | Gas Proportional Detector |
| Testable Elements: | Gold, silver, copper, platinum, palladium, cadmium, etc |
| Hare Ware: | Integrated PC with touch screen, Wireless LAN, USB interfaces, Video camera |
| Main Structure: | High-strength metal frame and industry plastic shell |
| N/G Weight(KG): | 33 / 45 |
EXF9600 delivers wide elemental coverage with an easy-to-learn software. Non-destructively analyze from sodium (Na) through uranium (U) in powders, liquids and solids.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection.
Low cost with unmatched performance-to-price ratio
Applications:
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
