2.0hp Automatic Ice Cream Cone Machine Cast Iron Baking Template
Automatic Ice Cream Machine , New , High Productivity ,
Stainless Steel , Cast Iron Baking Template.
Automatic Ice Cream Machine
Flexible and diverse, it can be matched according to different needs, different rolling
machine systems, and various products can be produced.
cone ejection system.easy to use and maintain.flexible cone ejector device with springs
allows cone diameter within 2mm difference to be ejected , no matter flat-top natural
rimmed cone.
star-reel system , wafer takes shorter path from baking plates to rolling molds.use of sugar
and oil can be reduced.
cone length control devices.control the length , diameter , size of sugar cone and perfect flat topped.
| Applicable Industries | Food & Beverage Factory, Other |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | None |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Condition | New |
| Place of Origin | China |
| Brand Name | STARLAND |
| Model Number | CBI-93*2A |
| Voltage | 220V/380V |
| Weight | 6500KG |
| Dimension(L*W*H) | 12000L x 2400W x 1800H |
| Certification | CE |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Number of Baking Plates: | 93 |
| Standard Cone /hour**: | 8200(23°,L108mm) |
| Place of Origin: | China |
| Gas consumption(kg)/ hour: | 11-12 |
| name: | Automatic Ice Cream Machine |
| Material: | Stainless Steel |
| Main Motor Specification: | 2.0hp ; 1.5kw |

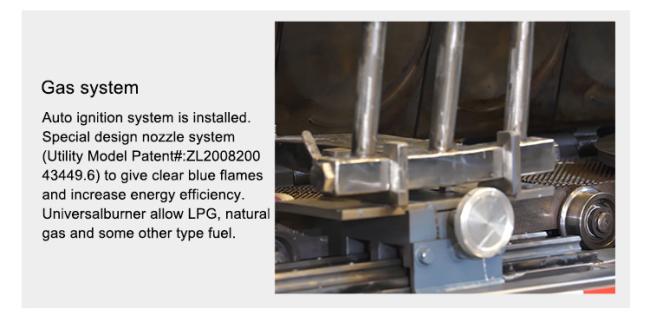

Gas system
Auto ignition system is installed. Special design nozzle system(Utility
Model Patent#:ZL200820043449.6)
to give clear blue flames and increase energy efficiency.
Universalburner allow LPG, natural gas and some other type fuel.
Cone length control devices
Control the length, diameter, size of sugar cone and perfect flat topped.
High degree of intelligence
Use smart control panel convenient and quick.
TURNTABLE CO-DIREC TIONAL CUP RECEIVINGSYSTEM
The new cup receiving system, with the equipment, runs on the same
horizontal line as the roll mold unwinding, to ensure that the cone
cups fall into the cup receiving groove more accurately and achieve higher
automation.

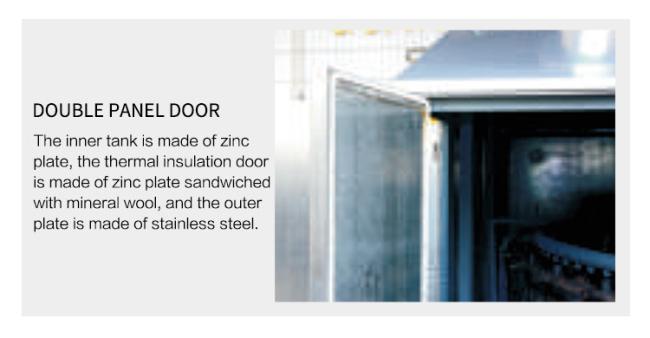

DOUBLE PANEL DOOR
The inner tank is made of zinc plate, the thermal insulation door is made of zinc
plate sandwiched with mineral wool, and the outer plate is made of stainless steel.
The use of air heat insulation convection heat preservation can reduce the temperature
of the production site and achieve the effect of energy saving.
AUTOMATIC UNLOADING SYSTEM
Easy to use and maintain, thanks to the spring, the product can be flexibly
discharged, whether it is a flat cone or a natural side cone.

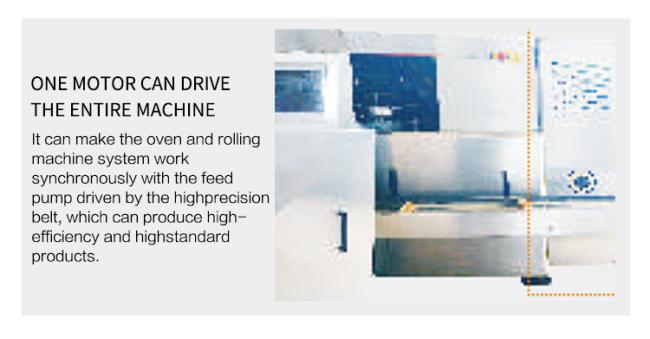

ONE MOTOR CAN DRIVE THE ENTIRE MACHINE
It can make the oven and rolling machine system work synchrono usly with
the feed pump driven by the highprecision belt, which can produce highefficiency
and highstandard products.
FERRIS WHEEL SYSTEM
Shorten the distance of the product from the baking template and reduce the
amount of sugar and oil.
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What’s the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.
