SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Female Connector for Server, Automotive, Wire Cable Applications
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.

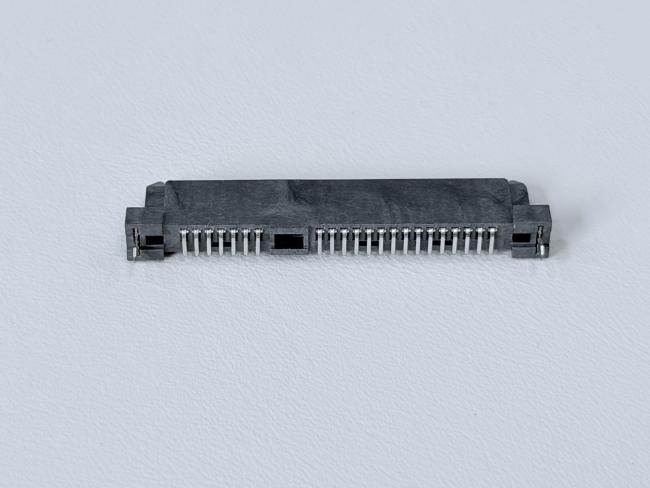

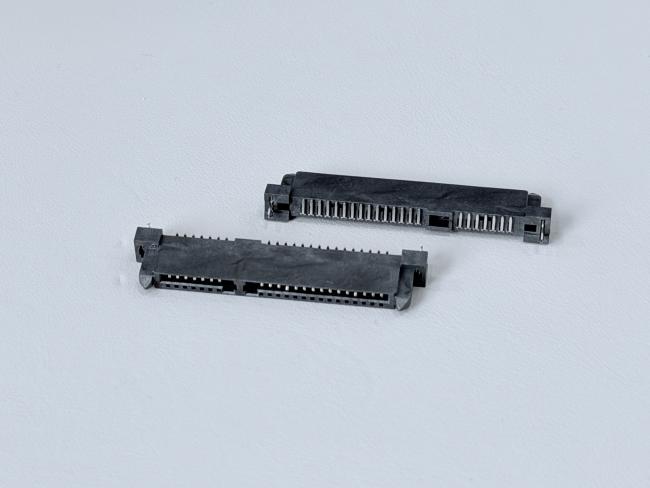

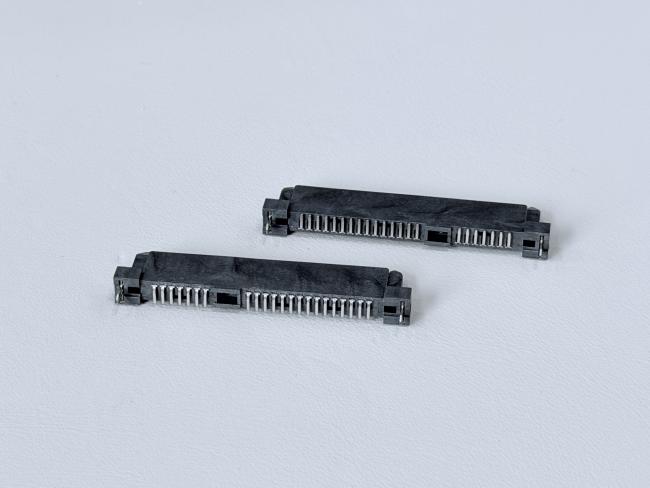

The SATA 22P Female Connector (SMT type) is designed for high-reliability SATA power and signal transmission.
It features G/F (gold flash) plated contacts, Ni 50µ” minimum underplating, and Sn ≥80µ” tin-plated solder areas to ensure stable electrical performance and corrosion resistance.
The connector uses phosphor bronze (C5191-H) terminals with a thickness of 0.25mm, providing strong mechanical durability.
The housing is molded from LCP + glass fiber (UL94-V0), offering excellent heat resistance and dimensional stability.
Electrical performance meets all specifications on the drawing, including 1.5A@40VAC, ≤30mΩ contact resistance, ≥1000MΩ insulation resistance, and 500VAC/min withstand voltage.
Mechanical reliability includes ≤45N mating force, ≥10N unmating force, and ≥0.8kgf single-pin retention force.
The connector also complies with RoHS 2.0.
This 34-pin SATA connector is suitable for applications requiring compact, reliable, and stable PCB-mounted SATA interfaces.
| Category | Details |
|---|---|
| Product Type | SATA 22P Female Connector, Pin SMT Type |
| Operating Temperature | –20°C to +85°C |
| Rated Current | 1.5A @ 40VAC |
| Contact Resistance | ≤ 30mΩ |
| Withstand Voltage | 500VAC/min |
| Insulation Resistance | ≥ 1000MΩ |
| Terminal—Nickel Plating | Ni ≥ 50µ” |
| Contact Area Gold Plating | Au G/F (Gold Flash) |
| Tin Plating on Solder/Crimp Area | Sn ≥ 80µ” |
| Pitch | 1.27mm |
| Mating Force | ≤ 45N |
| Unmating Force | ≥10N for 50 cycles |
| Single Pin Retention Force | ≥ 0.8kgf |
| Terminal Material (③) | Phosphor Bronze C5191-H, T=0.25 |
| Housing Material | LCP + G/F, Black, UL94-V0 |
| PEG Material | Brass C2680-H, T=0.30 |
| Links Way | P19: DIP solder type with wire |
| Plating Specification Code | A2: Au G/F Plated |
| Environmental | RoHS 2.0 |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
